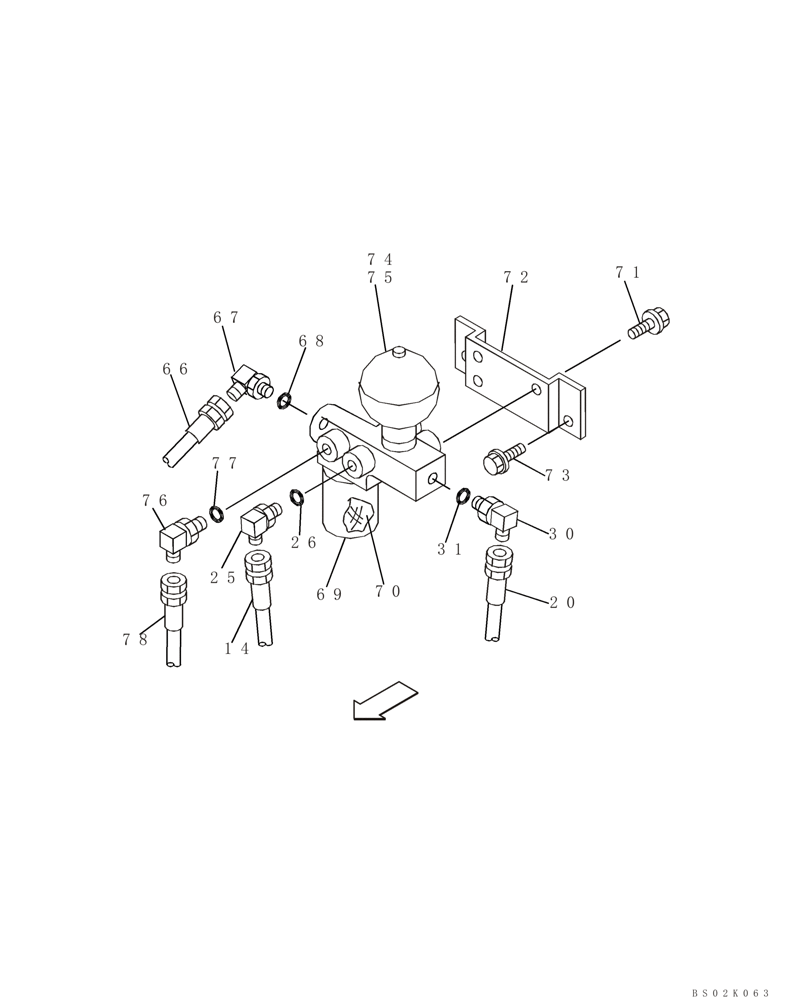

Запчасти Case CX330 (08-44) - ACCUMULATOR - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

14

161293A1

HOSE

See Figure 08-45

1шт.

20

KMJ2204

HOSE

See Figure 08-44

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

157935A1

ELBOW

Incl. 31

1шт.

31

154487A1

O-RING

1шт.

66

KHJ2427

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

See Figure 08-42

1шт.

67

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Inc. 68

1шт.

68

154487A1

O-RING

1шт.

69

KHJ2562

MANIFOLD

Incl. 69A, 70

1шт.

69a

164690A1

O-RING

Not Illustrated

1шт.

70

153233A1

HYDRAULIC OIL FILTER

1шт.

71

166350A1

BOLT

3шт.

72

KRJ5948

BRACKET

1шт.

73

166351A1

BOLT,Sems, M10 x 20mm

2шт.

74

150894A1

ACCUMULATOR

Incl. 75

1шт.

75

154487A1

O-RING

1шт.

76

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

166480A1

HOSE

See Figure 08-42

1шт.
