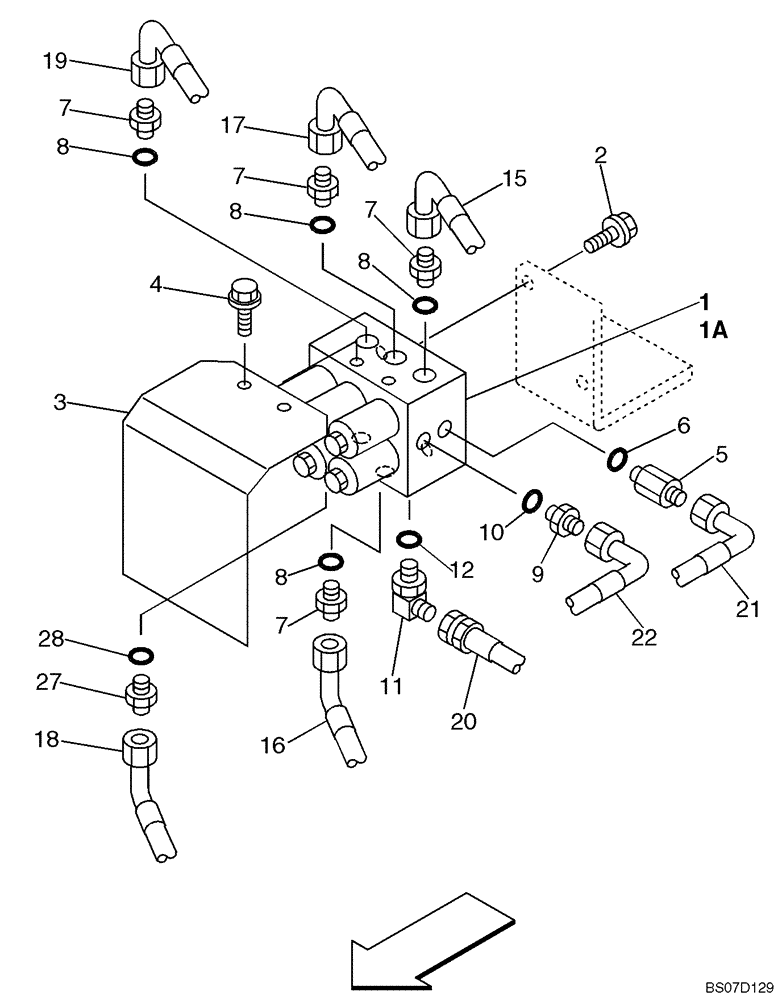

Запчасти Case CX330 (08-43) - VALVE, SOLENOID - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

KHJ1972

SOLENOID VALVE

See Figure 08-79; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figure 08-79E

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

2шт.

3

KHJ1581

COVER

1шт.

4

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

5

159226A1

ADAPTER

Incl. 6

1шт.

6

154475A1

O-RING

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 8

4шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 10

1шт.

10

154475A1

O-RING

1шт.

11

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 12

1шт.

12

154475A1

O-RING

1шт.

15

162650A1

HOSE,3500.00 mm

See Figure 08-45

1шт.

16

162649A1

HOSE,3100.00 mm

See Figure 08-45

1шт.

17

164232A1

HOSE ASSY.

See Figure 08-45

1шт.

18

KHJ1930

HOSE

See Figure 08-45

1шт.

19

KTJ1786

HOSE

See Figure 08-45

1шт.

20

KMJ2204

HOSE

See Figure 08-44

1шт.

21

164115A1

HYDRAULIC HOSE

See Figure 08-45

1шт.

22

162531A1

HOSE

See Figure 08-45

1шт.

27

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 28

1шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
