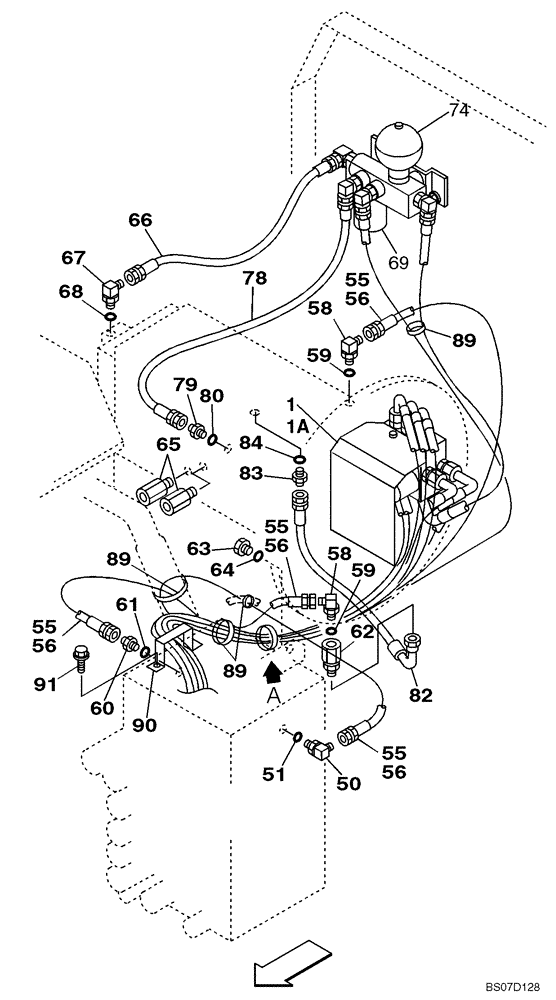

Запчасти Case CX330 (08-42) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

KHJ1972

SOLENOID VALVE

Solenoid; See Figure(s) 08-43, 08-79; No Longer Available, Order KHJ15460

1шт.

1a

KHJ15460

SOLENOID VALVE

See Figure(s) 08-43, 08-79E

1шт.

50

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ2728

HYDRAULIC HOSE,6.30 mm ID x 2750.00 mm

Replaces 157996A1

1шт.

56

KHJ1227

HYDRAULIC HOSE,6.35 mm ID x 1600.00 mm

Replaces 152604A1

1шт.

58

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 59

2шт.

59

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

60

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 61

1шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

167662A1

FITTING

1шт.

63

159002A1

PLUG

Incl. 64

1шт.

64

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

KHV0373

STUD

2шт.

66

KHJ2427

HYDRAULIC HOSE,12.70 mm ID x 600.00 mm

See Figure 08-44

1шт.

67

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 68

1шт.

68

154487A1

O-RING

1шт.

69

KHJ2562

MANIFOLD

See Figure 08-44

1шт.

74

150894A1

ACCUMULATOR

See Figure 08-44

1шт.

78

166480A1

HOSE

1шт.

79

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 80

1шт.

80

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

KHJ2733

HYDRAULIC HOSE,6.30 mm ID x 700.00 mm

Replaces 161659A1

1шт.

83

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

KHR2581

CLAMP

1шт.

86

KHJ1215

BOLT,Spcl

2шт.

89

150071A1

MOUNTING CLIP

1шт.

90

159032A1

CLAMP

1шт.

91

166350A1

BOLT

2шт.
