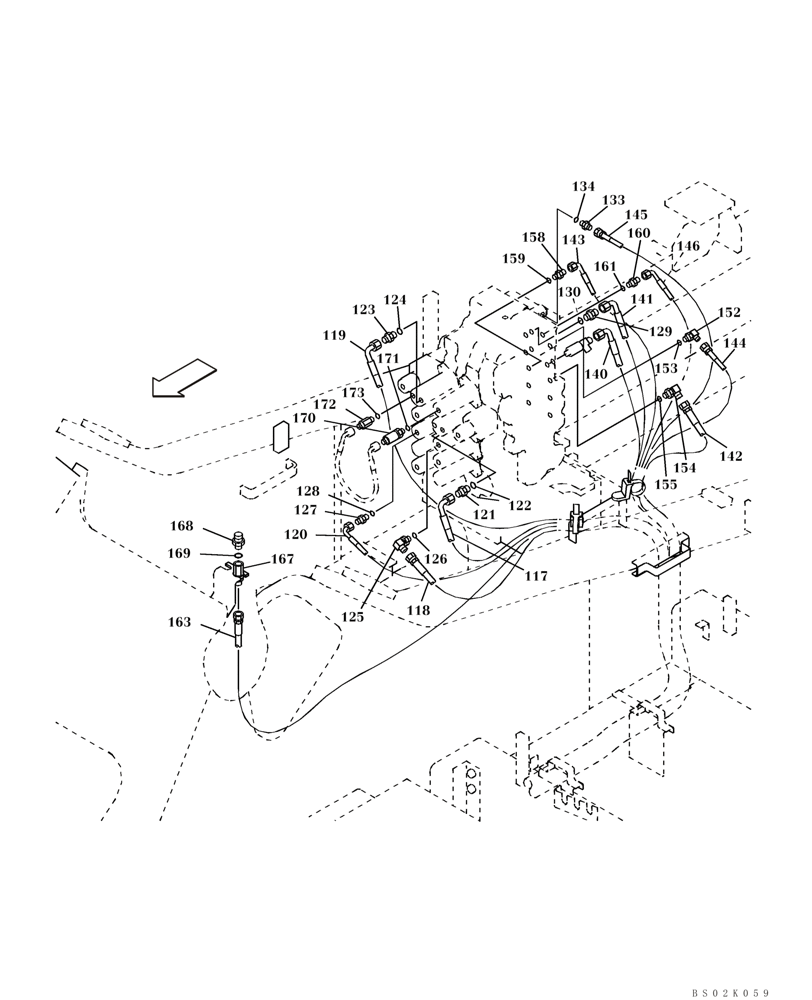

Запчасти Case CX330 (08-40) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS

117

161487A1

HOSE ASSY.

2800 mm (110-1/4 in); See Figure 08-33

1шт.

118

157972A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-32

1шт.

119

KMJ1830

HOSE

See Figure 08-33

1шт.

120

163359A1

HOSE ASSY.

2750 mm (108-1/4 in); See Figure 08-32

1шт.

121

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 122

1шт.

122

154475A1

O-RING

1шт.

123

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 124

1шт.

124

154475A1

O-RING

1шт.

125

153559A1

ELBOW

Incl. 126

1шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 128

1шт.

128

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

129

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 130

1шт.

130

154475A1

O-RING

1шт.

133

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 134

1шт.

134

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

140

161487A1

HOSE ASSY.

2800 mm (110-1/4 in); See Figure 08-33

1шт.

141

KMJ1830

HOSE

See Figure 08-33

1шт.

142

157972A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-32

1шт.

143

163359A1

HOSE ASSY.

2750 mm (108-1/4 in); See Figure 08-32

1шт.

144

KAJ3508

HYDRAULIC HOSE

See Figure 08-33

1шт.

145

152275A1

HOSE,63mm ID x 2900mm L

See Figure 08-32

1шт.

146

162193A1

HOSE ASSY.

See Figure 08-33

1шт.

152

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 153

1шт.

153

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

154

153559A1

ELBOW

Incl. 155

1шт.

155

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

158

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 159

1шт.

159

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

160

162366A1

ADAPTER

Incl. 161

1шт.

161

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

163

159066A1

HOSE

See Figure 08-33

1шт.

167

KHJ1078

ADAPTER

1шт.

168

KRJ1231

ADAPTER

Incl. 169

1шт.

169

154475A1

O-RING

1шт.

170

163104A1

ADAPTER

Incl. 171

1шт.

171

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

172

162554A1

FITTING

Incl. 173

1шт.

173

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
