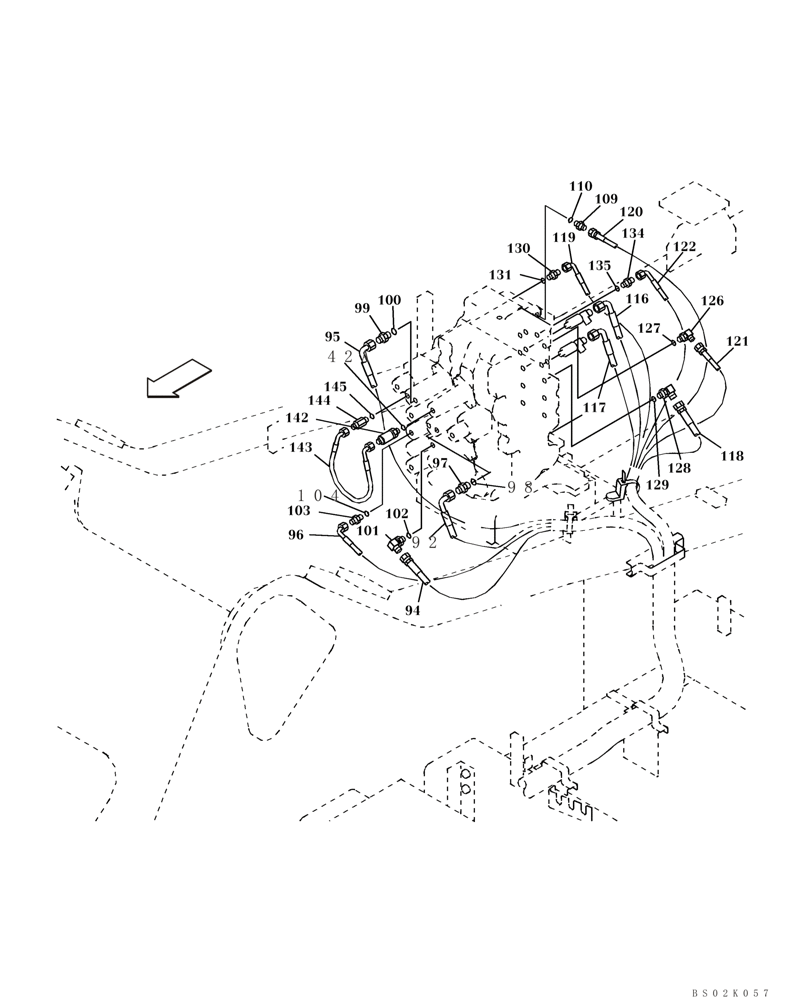

Запчасти Case CX330 (08-38) - PILOT CONTROL LINES, CONTROL VALVE - MODELS WITH LOAD HOLD (08) - HYDRAULICS

92

161487A1

HOSE ASSY.

2800 mm (110-1/4 in); See Figure 08-31

1шт.

94

157972A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-30

1шт.

95

KMJ1830

HOSE

See Figure 08-31

1шт.

96

163359A1

HOSE ASSY.

2750 mm (108-1/4 in); See Figure 08-30

1шт.

97

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 98

1шт.

98

154475A1

O-RING

1шт.

99

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 100

1шт.

100

154475A1

O-RING

1шт.

101

153559A1

ELBOW

Incl. 102

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

161487A1

HOSE ASSY.

2800 mm (110-1/4 in); See Figure 08-31

1шт.

117

KMJ1830

HOSE

See Figure 08-31

1шт.

118

157972A1

HOSE ASSY.

2900 mm (114-3/16 in); See Figure 08-30

1шт.

119

163359A1

HOSE ASSY.

2750 mm (108-1/4 in); See Figure 08-30

1шт.

120

KAJ3508

HYDRAULIC HOSE

See Figure 08-30

1шт.

121

152275A1

HOSE,63mm ID x 2900mm L

See Figure 08-31

1шт.

122

162193A1

HOSE ASSY.

See Figure 08-31

1шт.

126

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 127

1шт.

127

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

128

153559A1

ELBOW

Incl. 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 131

1шт.

131

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

162366A1

ADAPTER

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

142

163104A1

ADAPTER

Incl. 142A

1шт.

142a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

143

161176A1

HOSE ASSY.

1шт.

144

162554A1

FITTING

Incl. 145

1шт.

145

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
