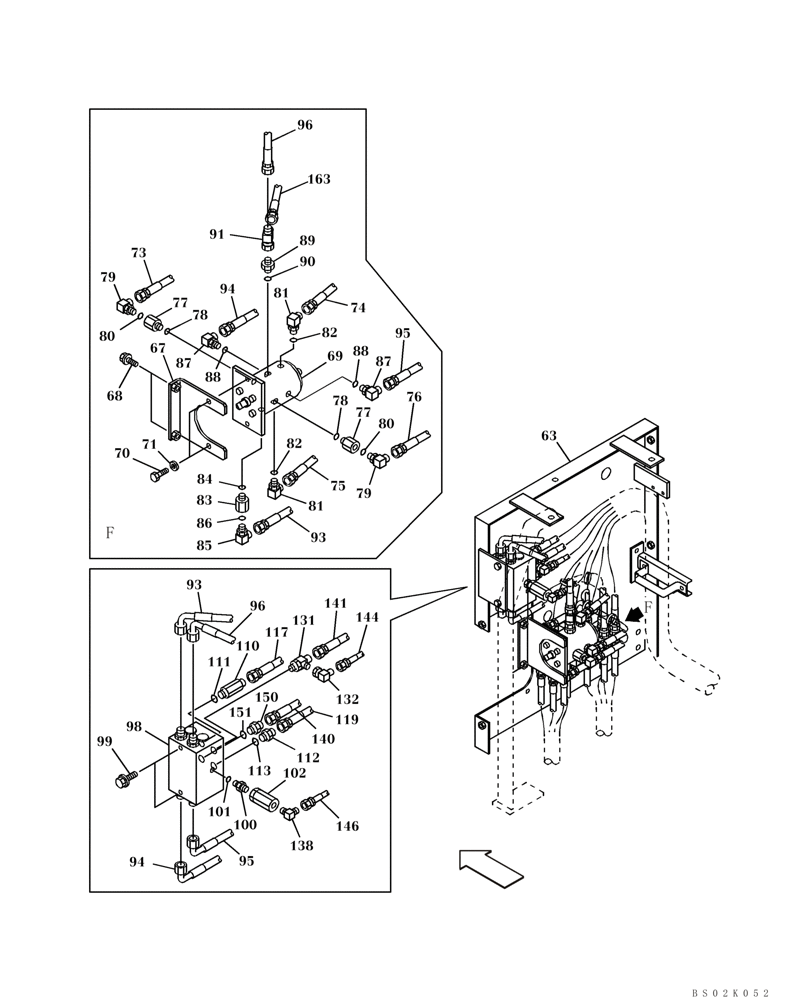

Запчасти Case CX330 (08-33) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD & CONTROL SELECTOR VALVE (08) - HYDRAULICS

63

KTJ2107

BRACKET

1шт.

67

KNJ2946

BRACKET

1шт.

68

166052A1

BOLT

2шт.

69

KHJ2184

VALVE

See Figure 08-75

1шт.

70

167836A1

BOLT,High Strength, M10 x 25mm

2шт.

71

150409A1

WASHER

2шт.

73

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

See Figure 08-32

1шт.

74

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

See Figure 08-32

1шт.

75

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

See Figure 08-32

1шт.

76

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

See Figure 08-32

1шт.

77

KHJ1584

UNION

Incl. 78

2шт.

78

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

79

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 80

2шт.

80

154475A1

O-RING

1шт.

81

153559A1

ELBOW

Incl. 82

2шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

83

KHJ1584

UNION

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 86

1шт.

86

154475A1

O-RING

1шт.

87

153559A1

ELBOW

Incl. 88

2шт.

88

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

152747A1

ADAPTER

Incl. 90

1шт.

90

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

KHJ2234

TEE

1шт.

93

KHJ1169

HYDRAULIC HOSE,9.52 mm ID x 2400.00 mm

1шт.

94

KHJ1193

HYDRAULIC HOSE,9.52 mm ID x 450.00 mm

1шт.

95

KHJ1062

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

96

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

1шт.

98

KSJ2845

VALVE, CUSHION

1шт.

99

166052A1

BOLT

2шт.

100

152899A1

HYD CONNECTOR

Incl. 100

1шт.

101

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

102

151552A1

FILTER

1шт.

110

KAJ2351

FITTING

Incl. 110

1шт.

111

154475A1

O-RING

1шт.

112

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 112

1шт.

113

154475A1

O-RING

1шт.

117

161487A1

HOSE ASSY.

See Figure 08-40

1шт.

119

KMJ1830

HOSE

See Figure 08-40

1шт.

131

163422A1

TEE

1шт.

132

163814A1

ELBOW

1шт.

138

153596A1

ADAPTER

1шт.

140

161487A1

HOSE ASSY.

See Figure 08-40

1шт.

141

KMJ1830

HOSE

See Figure 08-40

1шт.

144

KAJ3508

HYDRAULIC HOSE

See Figure 08-40

1шт.

146

162193A1

HOSE ASSY.

See Figure 08-40

1шт.

150

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 151

1шт.

151

154475A1

O-RING

1шт.

163

159066A1

HOSE

See Figure 08-40

1шт.
