(08-31) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD

Запчасти Case CX330 (08-31) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS

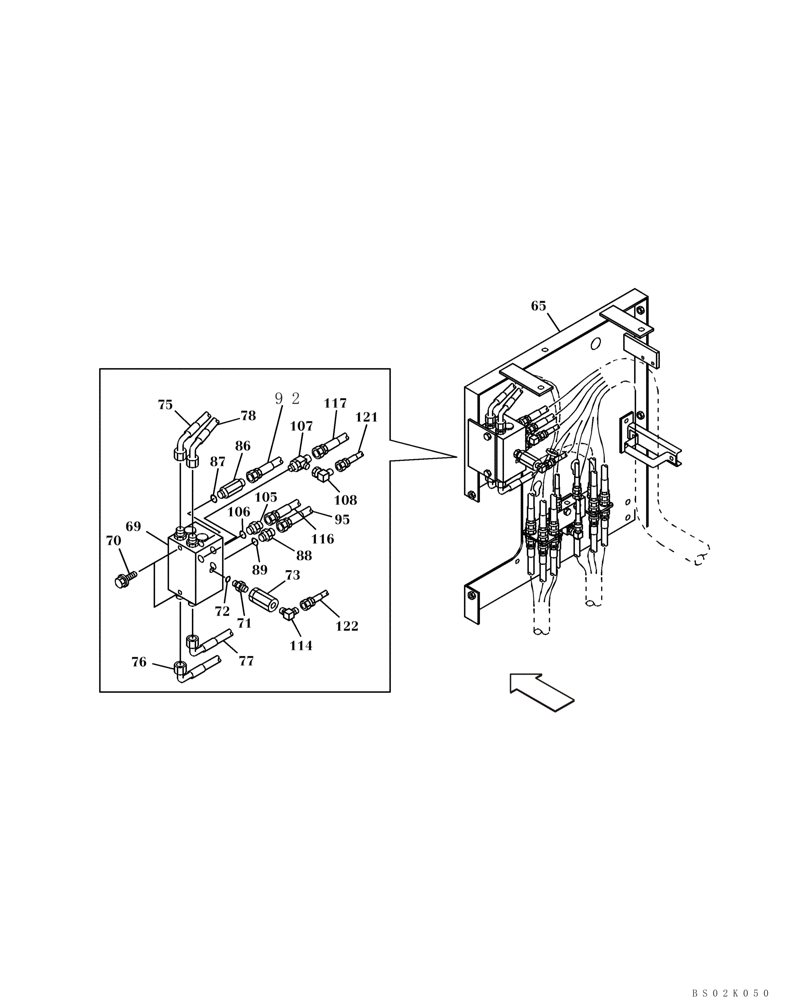

Схема запчастей Case CX330 - (08-31) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS
72
106
116
bs02k050
107
88
86
117
65
87
92
73
76
89
114
71
105
95
121
122
75
77
69
108
70
78
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

65

KTJ2107

BRACKET

1шт.

69

KSJ2845

VALVE, CUSHION

1шт.

70

166052A1

BOLT

2шт.

71

152899A1

HYD CONNECTOR

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

151552A1

FILTER

1шт.

75

KRJ3569

HOSE

See Figure 08-30

1шт.

76

162835A1

HOSE ASSY.

See Figure 08-30

1шт.

77

162835A1

HOSE ASSY.

See Figure 08-30

1шт.

78

KRJ3569

HOSE

See Figure 08-30

1шт.

86

KAJ2351

FITTING

Incl. 87

1шт.

87

154475A1

O-RING

1шт.

88

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 89

1шт.

89

154475A1

O-RING

1шт.

92

161487A1

HOSE ASSY.

See Figure 08-38

1шт.

95

KMJ1830

HOSE

See Figure 08-38

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 106

1шт.

106

154475A1

O-RING

1шт.

107

163422A1

TEE

1шт.

108

163814A1

ELBOW

1шт.

114

153596A1

ADAPTER

1шт.

116

161487A1

HOSE ASSY.

See Figure 08-38

1шт.

117

KMJ1830

HOSE

See Figure 08-38

1шт.

121

152275A1

HOSE,63mm ID x 2900mm L

See Figure 08-38

1шт.

122

162193A1

HOSE ASSY.

See Figure 08-38

1шт.
