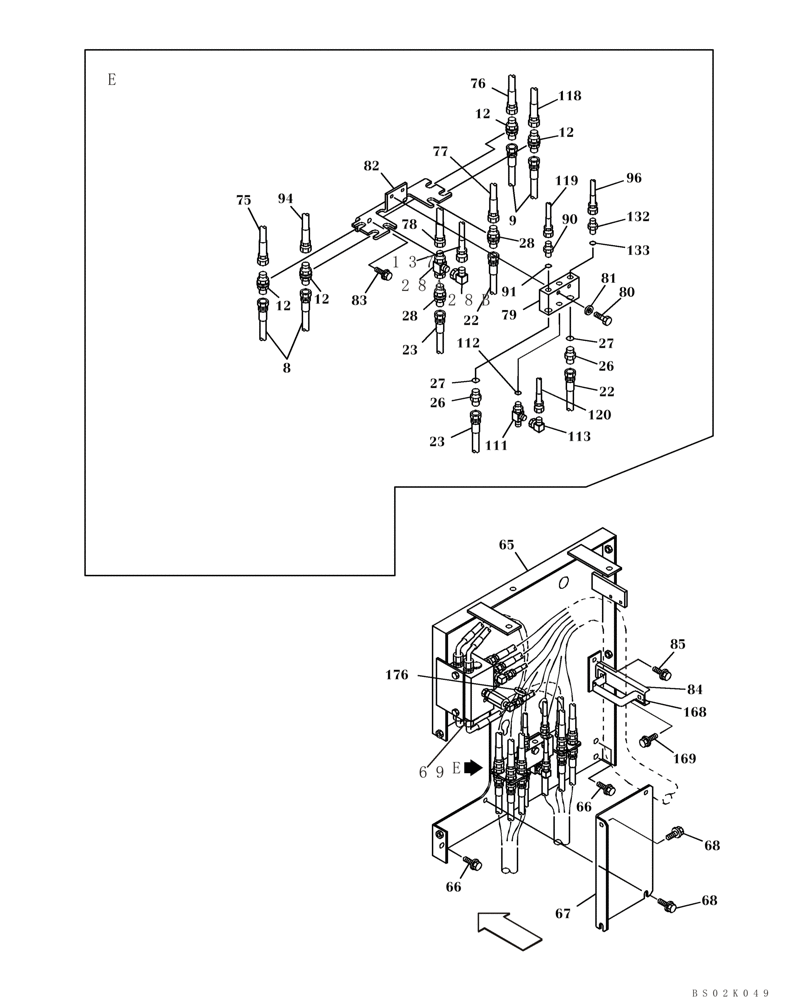

Запчасти Case CX330 (08-30) - PILOT CONTROL LINES, PARTITION - MODELS WITH LOAD HOLD (08) - HYDRAULICS

8

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-25

2шт.

9

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-25

2шт.

12

162826A1

ADAPTER

4шт.

22

KHJ1345

HYDRAULIC HOSE,9.52 mm ID x 2150.00 mm

See Figure 08-25

2шт.

23

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

See Figure 08-25

2шт.

26

152747A1

ADAPTER

Incl. 27

2шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

28

162826A1

ADAPTER

2шт.

28a

KHJ2234

TEE

1шт.

28b

153526A1

ELBOW

1шт.

65

KTJ2107

BRACKET

1шт.

66

166352A1

BOLT

3шт.

67

KTJ2108

COVER

1шт.

68

166052A1

BOLT

4шт.

69

KSJ2845

VALVE, CUSHION

See Figure 08-31

1шт.

75

KRJ3569

HOSE

See Figure 08-31

1шт.

76

162835A1

HOSE ASSY.

See Figure 08-31

1шт.

77

162835A1

HOSE ASSY.

See Figure 08-31

1шт.

78

KRJ3569

HOSE

See Figure 08-31

1шт.

79

KHJ17120

VALVE SECTION

; Replaces KHJ1973

1шт.

80

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

2шт.

81

153081A1

WASHER

2шт.

82

KHJ1576

BRACKET

1шт.

83

166052A1

BOLT

2шт.

84

KTJ2109

BRACKET

1шт.

85

166052A1

BOLT

2шт.

90

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 91

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

94

157972A1

HOSE ASSY.

See Figure 08-38

1шт.

96

163359A1

HOSE ASSY.

See Figure 08-38

1шт.

111

KHJ2773

TEE

Incl. 112; Replaces KHJ1974

1шт.

112

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

113

163814A1

ELBOW

1шт.

118

157972A1

HOSE ASSY.

See Figure 08-38

1шт.

119

163359A1

HOSE ASSY.

See Figure 08-38

1шт.

120

KAJ3508

HYDRAULIC HOSE

See Figure 08-38

1шт.

132

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 133

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

137

159066A1

HOSE

1шт.

168

159036A1

CLAMP

1шт.

169

166350A1

BOLT

2шт.

176

150071A1

MOUNTING CLIP

1шт.
