(08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD

Запчасти Case CX330 (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

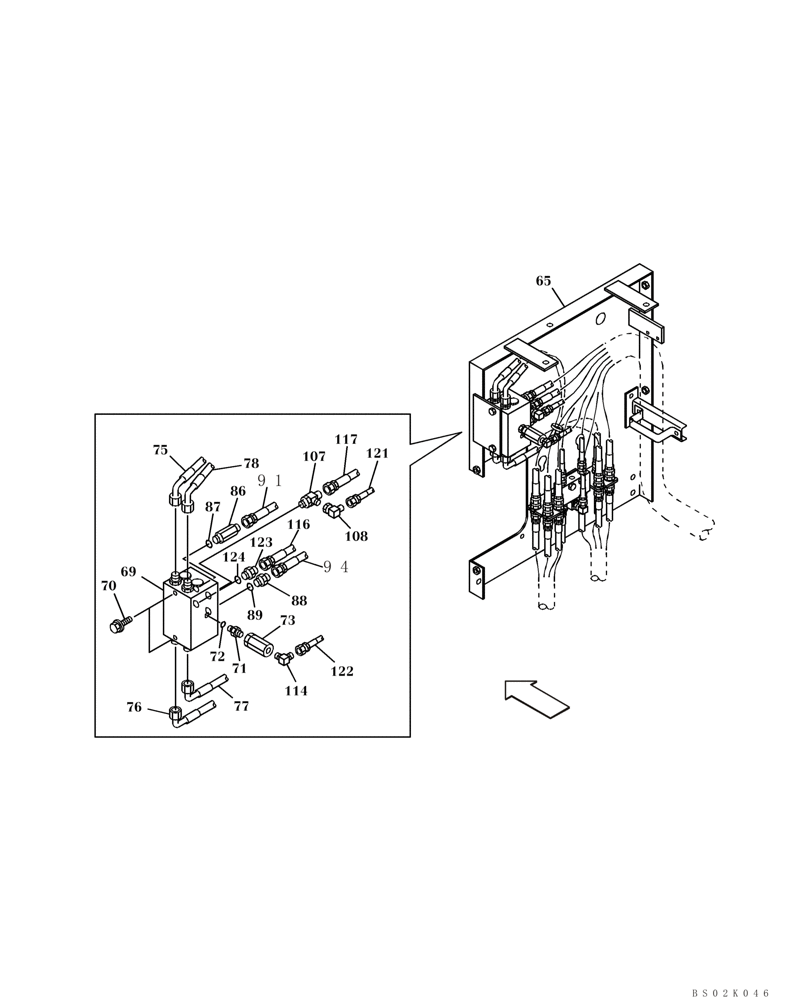

Схема запчастей Case CX330 - (08-27) - PILOT CONTROL LINES, PARTITION - MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS
77
114
123
122
86
89
bs02k046
73
76
107
65
78
70
124
71
69
87
116
121
88
72
108
75
94
117
91
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

65

KTJ2107

BRACKET

1шт.

69

KSJ2765

VALVE, CUSHION

See Figure 08-79C

1шт.

70

166052A1

BOLT

2шт.

71

152899A1

HYD CONNECTOR

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

151552A1

FILTER

1шт.

75

KRJ3569

HOSE

See Figure 08-26

1шт.

76

162835A1

HOSE ASSY.

See Figure 08-26

1шт.

77

162835A1

HOSE ASSY.

See Figure 08-26

1шт.

78

KRJ3569

HOSE

See Figure 08-26

1шт.

86

KAJ2351

FITTING

Incl. 87

1шт.

87

154475A1

O-RING

1шт.

88

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 89

1шт.

89

154475A1

O-RING

1шт.

91

161487A1

HOSE ASSY.

See Figure 08-34

1шт.

94

KMJ1830

HOSE

See Figure 08-34

1шт.

107

163422A1

TEE

1шт.

108

163814A1

ELBOW

1шт.

114

153596A1

ADAPTER

1шт.

116

161487A1

HOSE ASSY.

See Figure 08-34

1шт.

117

KMJ1830

HOSE

See Figure 08-34

1шт.

121

152275A1

HOSE,63mm ID x 2900mm L

See Figure 08-34

1шт.

122

162193A1

HOSE ASSY.

See Figure 08-34

1шт.

123

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 124

1шт.

124

154475A1

O-RING

1шт.
