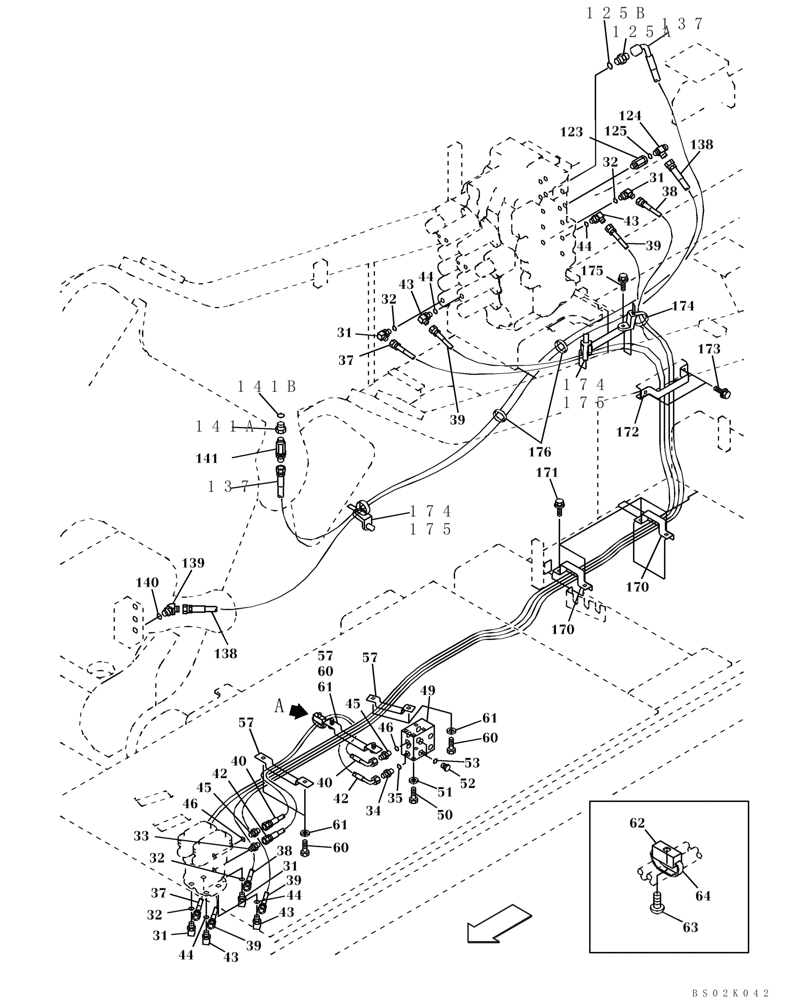

Запчасти Case CX330 (08-23) - PILOT CONTROL LINES, TRAVEL - MODELS WITH LOAD HOLD (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

161293A1

HOSE

1шт.

38

161292A1

HOSE,3550.00 mm

1шт.

39

157838A1

HOSE,6.5 mm ID x 3500.00 mm

2шт.

40

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

42

KAJ3524

HYDRAULIC HOSE

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

KRJ5903

MANIFOLD

1шт.

50

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

51

153081A1

WASHER

4шт.

52

159002A1

PLUG

Incl. 53

2шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ1394

CLAMP

3шт.

60

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

61

153081A1

WASHER

6шт.

62

150860A1

COLLAR

1шт.

63

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

64

150071A1

MOUNTING CLIP

2шт.

123

KHV0373

STUD

1шт.

124

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

Incl. 125

1шт.

125

154475A1

O-RING

1шт.

125a

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

125b

154475A1

O-RING

1шт.

137

159066A1

HOSE

1шт.

138

157968A1

HOSE

1шт.

139

157584A1

ELBOW

Incl. 140

1шт.

140

154475A1

O-RING

1шт.

141

KHJ1078

ADAPTER

1шт.

141a

KRJ1231

ADAPTER

Incl. 141B

1шт.

141b

154475A1

O-RING

1шт.

170

161095A1

CLAMP

2шт.

171

166350A1

BOLT

4шт.

172

KHJ1906

CLAMP

1шт.

173

166350A1

BOLT

2шт.

174

KHR2581

CLAMP

3шт.

175

KHJ1215

BOLT,Spcl

3шт.

176

150071A1

MOUNTING CLIP

1шт.
