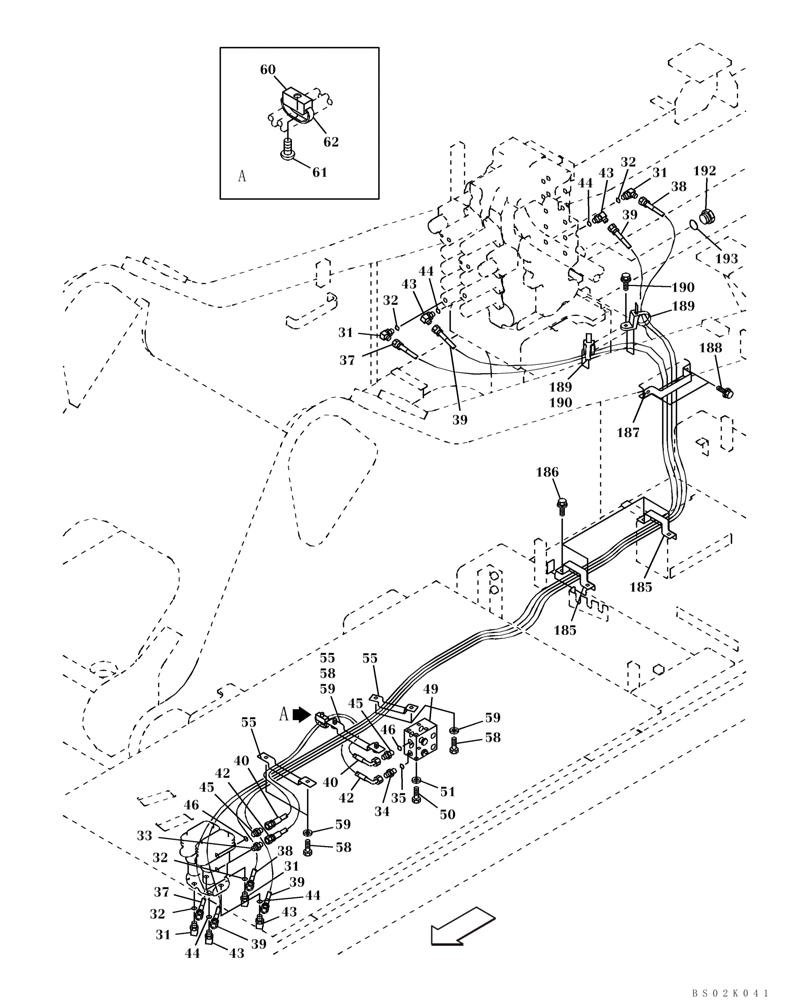

Запчасти Case CX330 (08-22) - PILOT CONTROL LINES, TRAVEL - MODELS WITH CONTROL SELECTOR VALVE (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

161293A1

HOSE

1шт.

38

161292A1

HOSE,3550.00 mm

1шт.

39

157838A1

HOSE,6.5 mm ID x 3500.00 mm

2шт.

40

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

42

KAJ3524

HYDRAULIC HOSE

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

KRJ5903

MANIFOLD

1шт.

50

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

51

153081A1

WASHER

4шт.

55

KHJ1394

CLAMP

3шт.

58

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

59

153081A1

WASHER

6шт.

60

150860A1

COLLAR

1шт.

61

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

62

150071A1

MOUNTING CLIP

1шт.

185

161095A1

CLAMP

2шт.

186

166350A1

BOLT

4шт.

187

KHJ1906

CLAMP

1шт.

188

166350A1

BOLT

2шт.

189

KHR2581

CLAMP

2шт.

190

KHJ1215

BOLT,Spcl

2шт.

192

152924A1

PLUG

1шт.

193

154503A1

O-RING

1шт.
