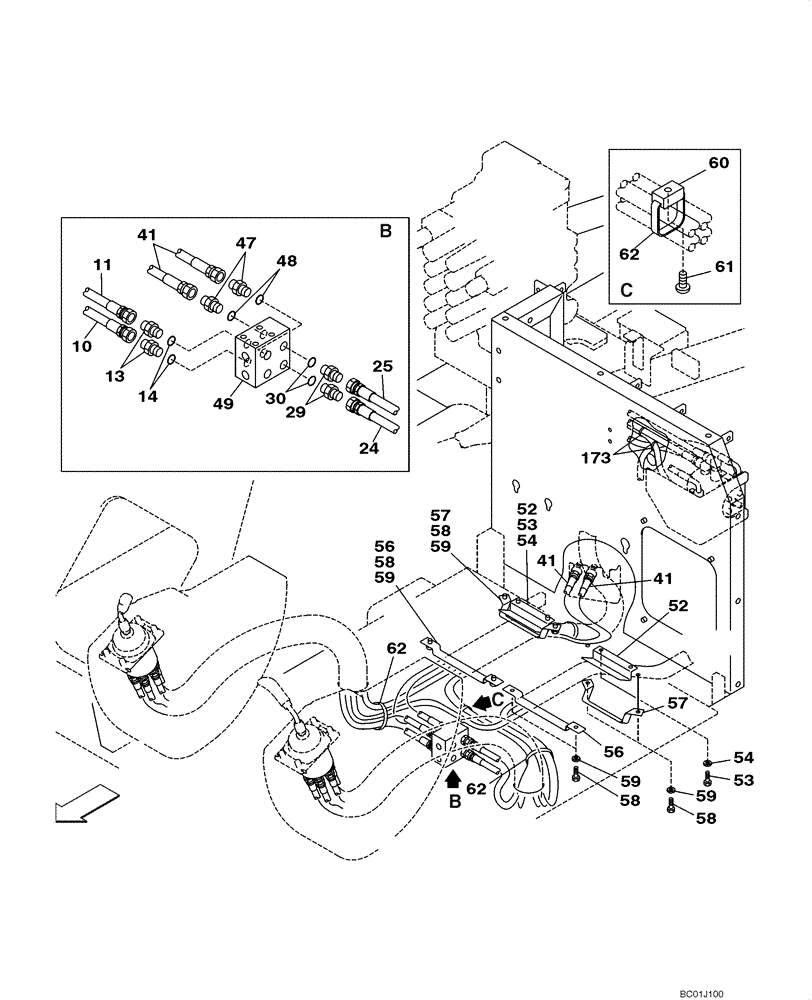

Запчасти Case CX290 (08-23) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Attachment

1шт.

All Models

1шт.

10

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in), See Figure 08-24

1шт.

11

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in), See Figure 08-24

1шт.

13

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 14

2шт.

14

154475A1

O-RING

1шт.

24

159214A1

HYDRAULIC HOSE

1200 mm (47-1/4 in), See Figure 08-24

1шт.

25

159213A1

HYDRAULIC HOSE

1150 mm (45-3/8 in), See Figure 08-24

1шт.

29

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 30

2шт.

30

154475A1

O-RING

1шт.

41

152751A1

HOSE,95.00 mm ID x 1000.00 mm

2шт.

47

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 48

2шт.

48

154475A1

O-RING

1шт.

49

KRJ5903

MANIFOLD

Also See Figure 08-20, 08-21

1шт.

52

KHJ1397

SUPPORT

2шт.

53

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

54

153081A1

WASHER

4шт.

56

KHJ1393

CLAMP

2шт.

57

KHJ1396

CLAMP

2шт.

58

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

8шт.

59

153081A1

WASHER

8шт.

60

150860A1

COLLAR

1шт.

61

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

62

150071A1

MOUNTING CLIP

3шт.

173

150071A1

MOUNTING CLIP

Models With Load Hold And Alternate Joystick Control Pattern

2шт.
