(08-22) - HYDRAULICS - PILOT CONTROL LINES

Запчасти Case CX290 (08-22) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

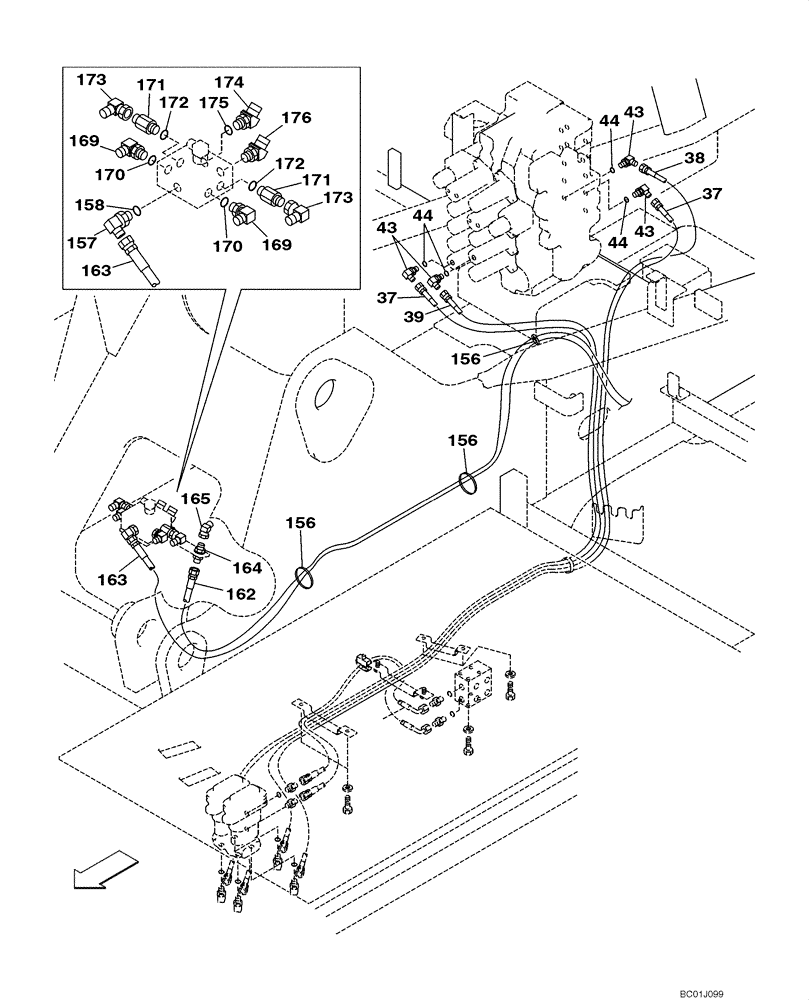

Схема запчастей Case CX290 - (08-22) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS
173
44
171
170
43
158
176
164
156
157
38
165
43
174
44
156
171
173
39
170
37
43
169
37
156
163
163
162
44
169
172
175
172
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Travel

1шт.

Models With Load Hold

1шт.

Models With Load Hold And Alternate Joystick Control Pattern

1шт.

37

157851A1

HOSE

2850 mm (112-1/4 in), See Figure 08-21

2шт.

38

152299A1

HOSE,63.00 mm ID x 2950.00 mm

See Figure 08-21

1шт.

39

157203A1

HOSE,2800.00 mm

2800 mm (110-1/4 in), See Figure 08-21

1шт.

43

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 44

4шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

156

150071A1

MOUNTING CLIP

3шт.

157

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 158

1шт.

158

154475A1

O-RING

1шт.

162

KRJ4336

HYDRAULIC HOSE,9.50 mm ID x 2200.00 mm

See Figure 08-30, Ref. 162; Figure 08-32, Ref. 179

1шт.

163

KHJ2280

HYDRAULIC HOSE,12.70 mm ID x 2400.00 mm

See Figure 08-30, REF 163; Figure 08-32, REF 180

1шт.

164

162826A1

ADAPTER

1шт.

165

KHJ1739

ELBOW

1шт.

169

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 170

2шт.

170

154475A1

O-RING

1шт.

171

159226A1

ADAPTER

Incl. 172

2шт.

172

154475A1

O-RING

1шт.

173

153526A1

ELBOW

2шт.

174

157584A1

ELBOW

Incl. 175

1шт.

175

154475A1

O-RING

1шт.

176

163004A1

ELBOW

1шт.
