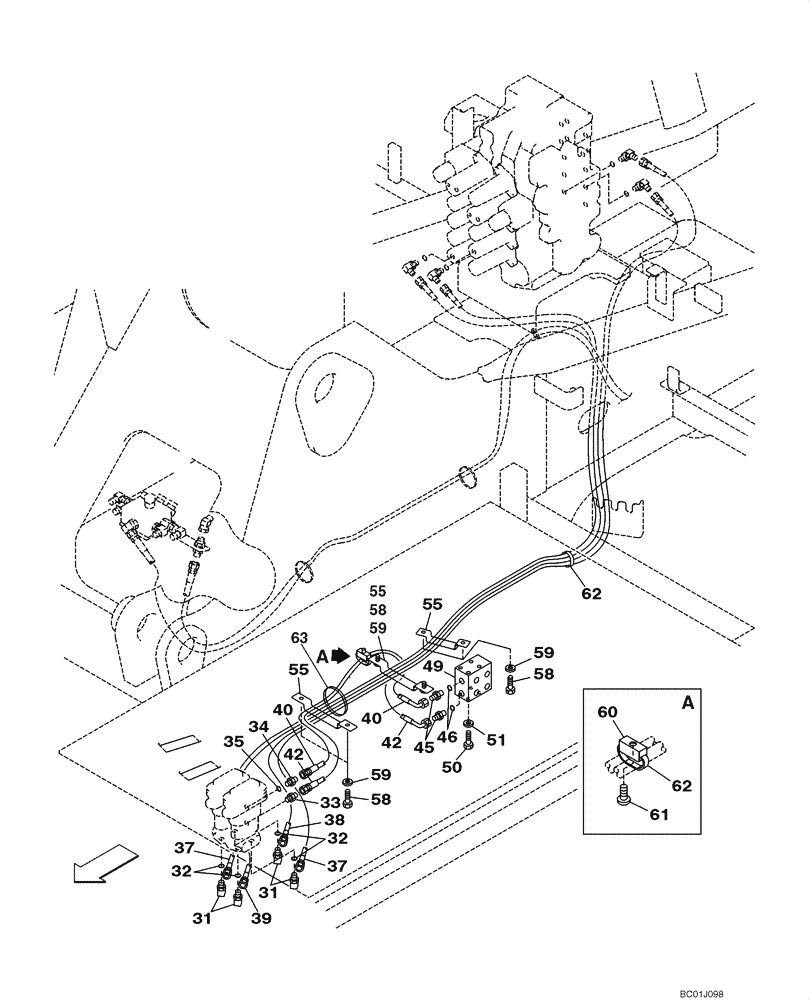

Запчасти Case CX290 (08-21) - HYDRAULICS - PILOT CONTROL LINES (08) - HYDRAULICS

Travel

1шт.

Models With Load Hold

1шт.

Models With Load Hold And Alternate Joystick Control Pattern

1шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

157851A1

HOSE

2850 mm (112-1/4 in), See Figure 08-22

2шт.

38

152299A1

HOSE,63.00 mm ID x 2950.00 mm

See Figure 08-22

1шт.

39

157203A1

HOSE,2800.00 mm

2800 mm (110-1/4 in), See Figure 08-22

1шт.

40

159019A1

HOSE ASSY.

900 mm (35-1/2 in)

1шт.

42

KAJ3524

HYDRAULIC HOSE

1шт.

45

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

KRJ5903

MANIFOLD

1шт.

50

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

51

153081A1

WASHER

4шт.

55

KHJ1951

CLAMP

Replaces KHJ1394

3шт.

58

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

59

153081A1

WASHER

6шт.

60

150860A1

COLLAR

1шт.

61

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

62

150071A1

MOUNTING CLIP

2шт.

63

150496A1

MOUNTING CLIP

250 mm (10 in), Models With Load Hold And Alternate Joystick Control Pattern

1шт.
