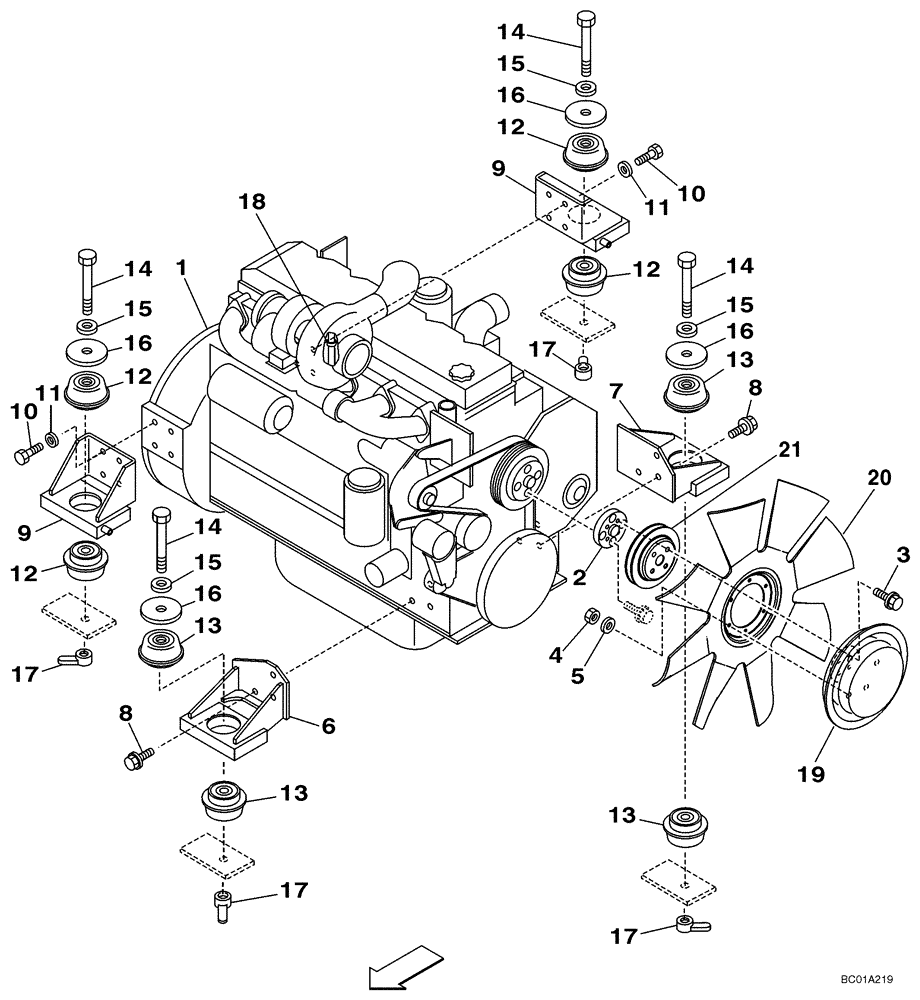

Запчасти Case CX290 (02-01) - ENGINE MOUNTING (02) - ENGINE

1

444022A1

ENGINE ASSY, Replaces 372230A1, See Figure 02-17, Incl. Figures 02-07 - 02-23, 03-03-03-08, 04-01 - 04-03

1шт.

2

KRH1428

SPACER

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

6

KRH1397

ENGINE MOUNT

1шт.

7

KRH1398

ENGINE MOUNT

1шт.

8

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

9

KRH1399

ENGINE MOUNT

2шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

11

150811A1

WASHER

M12

8шт.

12

KRH1225

SILENTBLOC

4шт.

13

KRH1226

SILENTBLOC

4шт.

14

827-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

4шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

16

KRH1256

PLATE

4шт.

17

KRH1251

SPECIAL NUT

M16

5шт.

18

157916A1

CLAMP

1шт.

19

374977A1

DRIVE ASSY.

Viscous Fan

1шт.

20

278432A1

FAN

Engine Cooling

1шт.

21

A189284

PULLEY,151mm OD

Accessory Drive

1шт.
