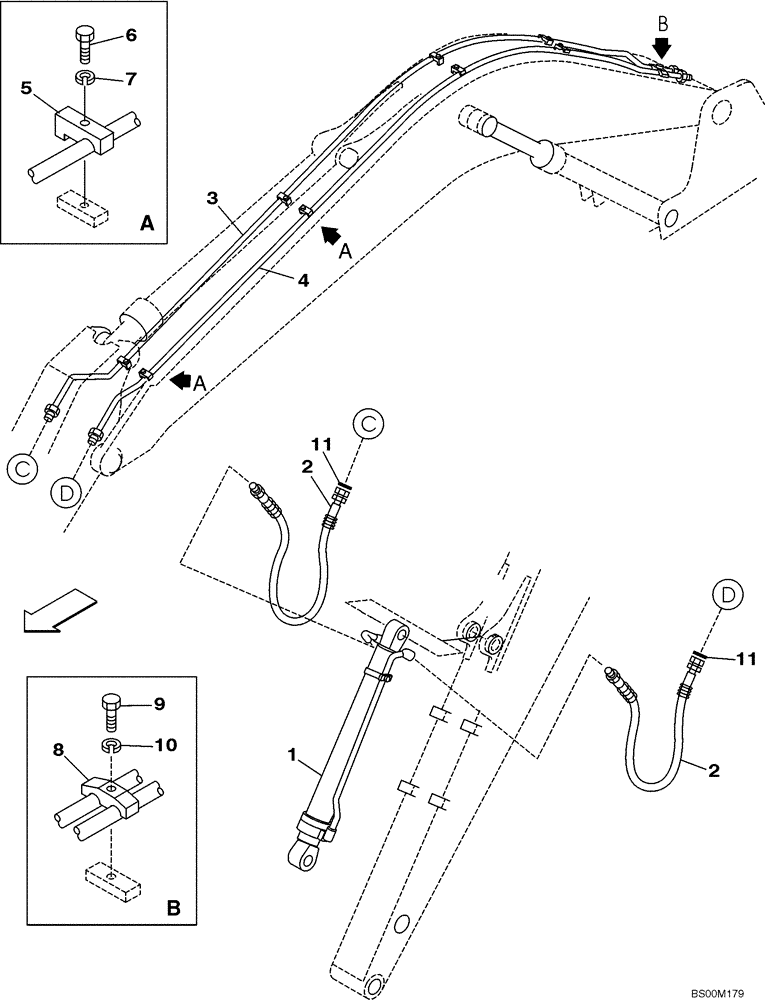

Запчасти Case CX290 (08-18) - HYDRAULICS - BUCKET (08) - HYDRAULICS

Arm 3,66 m (12 Ft)

1шт.

1

KBV1790

BUCKET CYLINDER

Bucket, See Figure 08-91

1шт.

2

KBV1957

HYDRAULIC HOSE,19.00 mm ID x 2200.00 mm

2шт.

3

KBV1756

TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

KBV1757

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

5

151486A1

CLAMP BRACKET

4шт.

6

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

7

150811A1

WASHER

M12

4шт.

8

159742A1

COLLAR

1шт.

9

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
