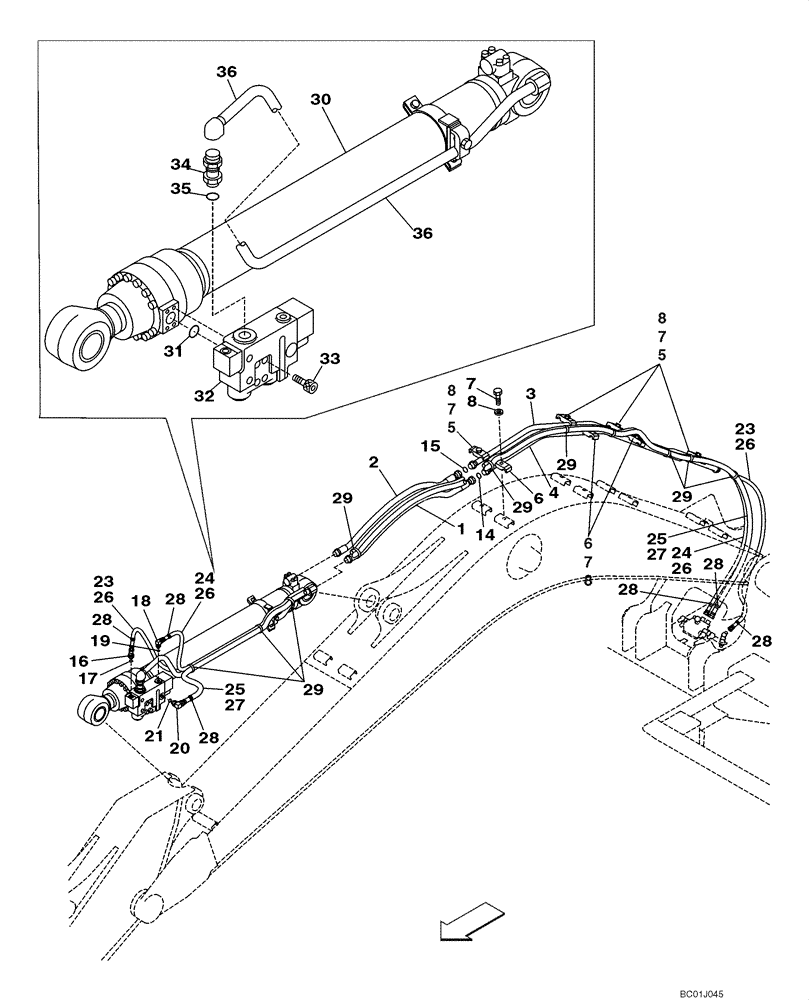

Запчасти Case CX290 (08-15) - HYDRAULICS - CYLINDER, ARM (08) - HYDRAULICS

Models With Load Hold

1шт.

1

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

2

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

3

KBV17580

HYD TUBE

TUBE ASSY., Replaces KBV1754

1шт.

4

KBV1940

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

5

151489A1

CLAMP

4шт.

6

159742A1

COLLAR

3шт.

7

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

7шт.

8

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

7шт.

14

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

16

157584A1

ELBOW

Incl. 17

1шт.

17

154475A1

O-RING

1шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 19

1шт.

19

154475A1

O-RING

1шт.

20

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 21

1шт.

21

154487A1

O-RING

1шт.

23

KBV1911

HYDRAULIC HOSE,9.50 mm ID x 7300.00 mm

1шт.

24

KBV1863

HYDRAULIC HOSE,9.50 mm ID x 7000.00 mm

1шт.

25

KBV1864

HYDRAULIC HOSE,12.70 mm ID x 7000.00 mm

1шт.

26

169298A1

PLASTIC-RUBBER TUBE

2шт.

27

KHV0393

PLASTIC-RUBBER TUBE

1шт.

28

150067A1

MOUNTING CLIP

150 mm (6 in)

6шт.

29

150496A1

MOUNTING CLIP

250 mm (10 in)

11шт.

30

KBV1824

HYDRAULIC CYLINDER

Arm, See Figure 08-90

1шт.

31

155211A1

O-RING

1шт.

32

KBV1858

VALVE

See Figure 08-84

1шт.

33

862-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

4шт.

34

KHV0326

ADAPTER

1шт.

35

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

36

KBV1946

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.
