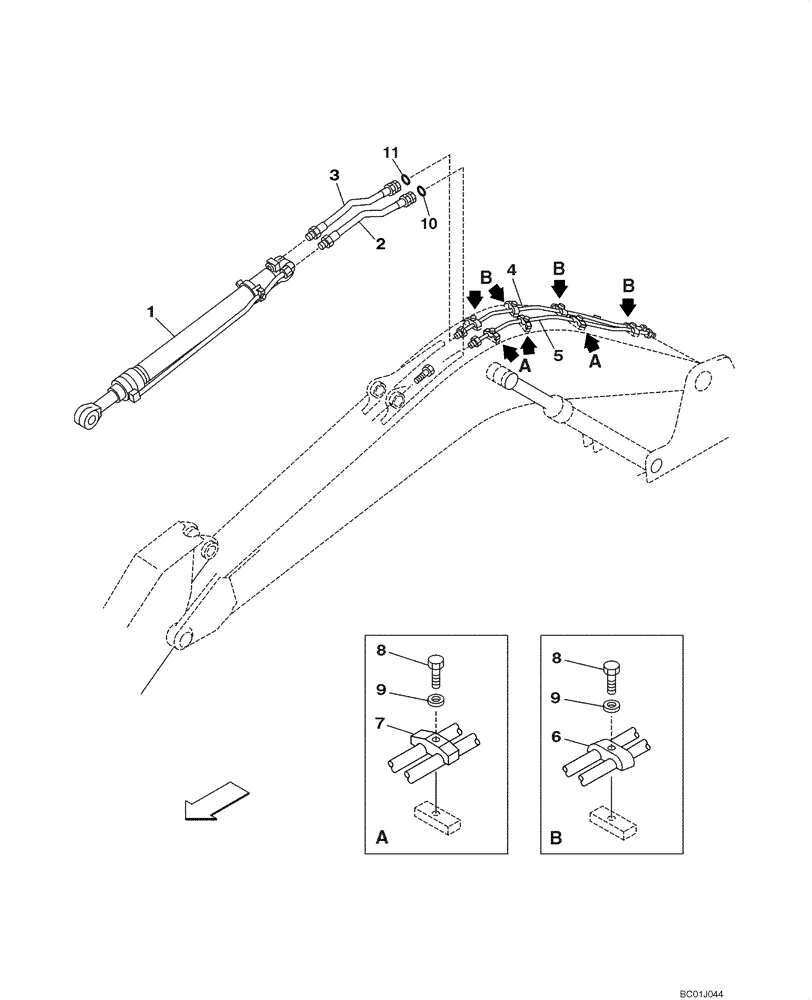

Запчасти Case CX290 (08-14) - HYDRAULICS - CYLINDER, ARM (08) - HYDRAULICS

Models Without Load Hold

1шт.

1

KBV1897

HYDRAULIC CYLINDER

Arm, See Figure 08-89

1шт.

2

KRV2405

HYDRAULIC HOSE,19mm ID x 1000mm L

1шт.

3

KRV2406

HYDRAULIC HOSE,25.4mm ID x 1000mm L

1шт.

4

KBV17580

HYD TUBE

TUBE ASSY., Replaces KBV1754

1шт.

5

KBV17590

HYD TUBE

TUBE ASSY., Replaces KBV1755

1шт.

6

151489A1

CLAMP

4шт.

7

159742A1

COLLAR

3шт.

8

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

7шт.

9

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

7шт.

10

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

11

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.
