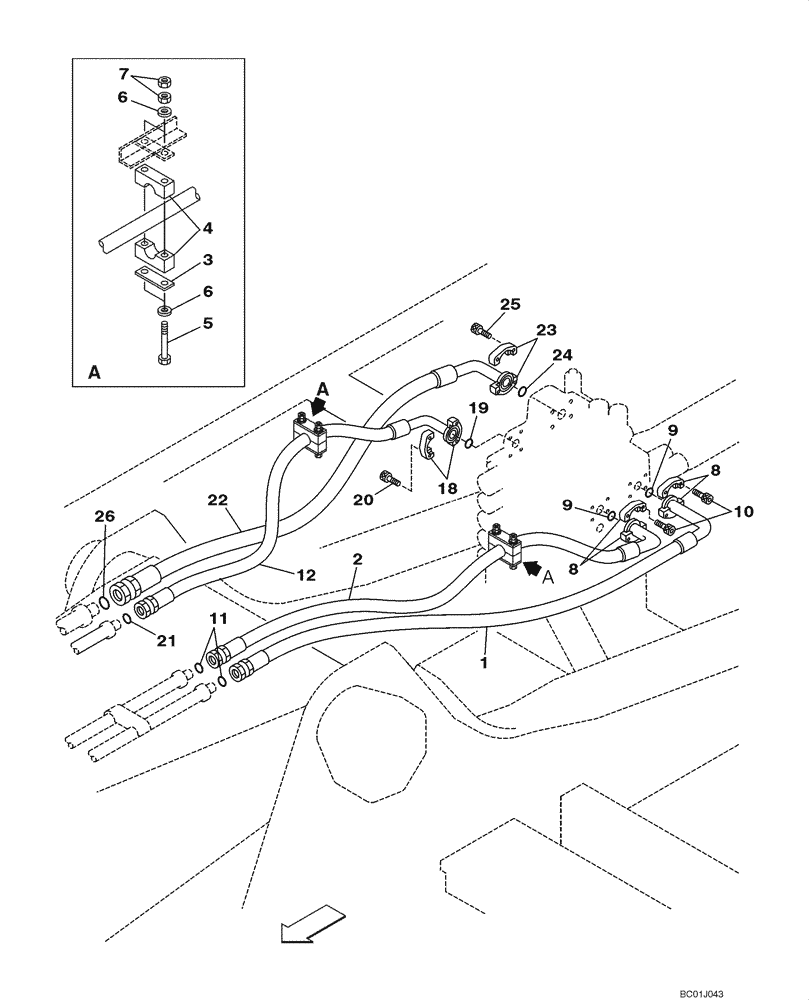

Запчасти Case CX290 (08-13) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

KBJ2972

HYDRAULIC HOSE,19.00 mm ID x 1580.00 mm

1шт.

2

KBJ2971

HYDRAULIC HOSE,19mm ID x 1550mm L

1шт.

3

KBJ2973

COLLAR

2шт.

4

162248A1

COLLAR

4шт.

5

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

6

150811A1

WASHER

M12

8шт.

7

829-1412

NUT,M12, Cl 10.9

8шт.

8

153458A1

FLANGE

Split

4шт.

9

155210A1

O-RING

2шт.

10

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

12

KBJ2970

HYDRAULIC HOSE,19.00 mm ID x 1480.00 mm

1шт.

18

153458A1

FLANGE

Split

2шт.

19

155210A1

O-RING

1шт.

20

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

22

KBJ2969

HYDRAULIC HOSE,25.40 mm ID x 1590.00 mm

1шт.

23

153459A1

FLANGE

Split

2шт.

24

155211A1

O-RING

1шт.

25

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

26

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.
