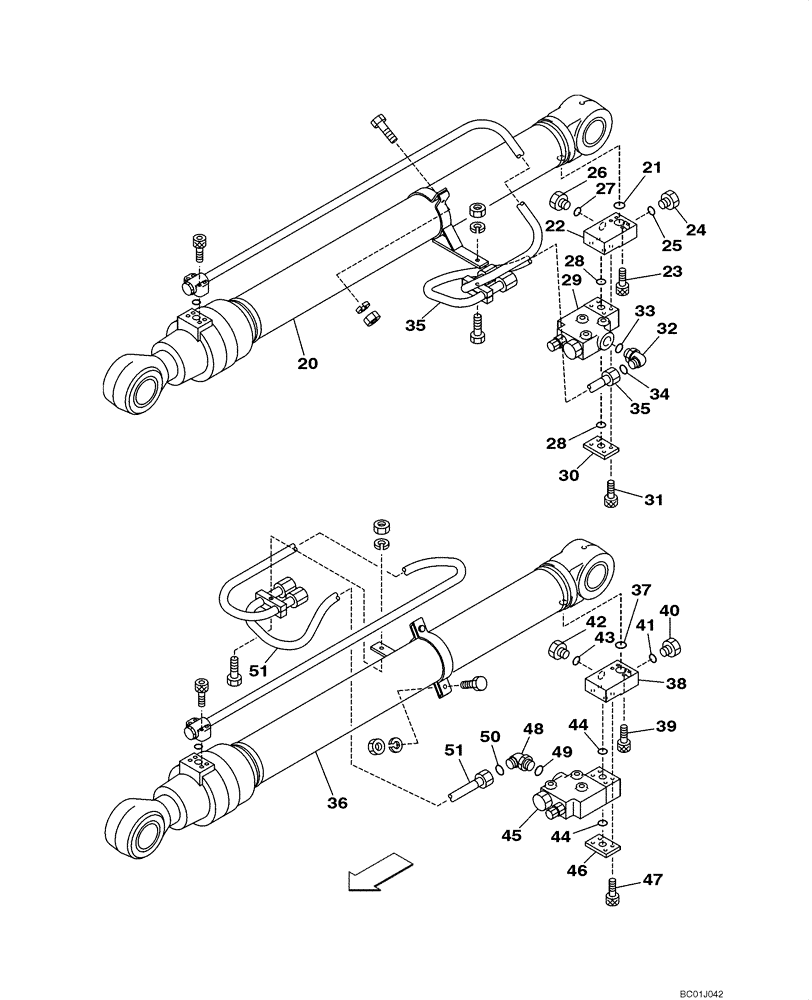

Запчасти Case CX290 (08-12) - HYDRAULICS - BOOM CYLINDER LINE (08) - HYDRAULICS

Models With Load Hold

1шт.

20

KBV1822

HYDRAULIC CYLINDER

Right Hand, See Figure 08-88

1шт.

21

155210A1

O-RING

1шт.

22

KBV1859

MANIFOLD

1шт.

23

863-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

4шт.

24

152924A1

PLUG

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

153105A1

PLUG

Incl. 27

1шт.

27

154475A1

O-RING

1шт.

28

155211A1

O-RING

1шт.

29

KBV1857

VALVE

See Figure 08-83

1шт.

30

161955A1

FLANGE

Flat

1шт.

31

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

32

KHJ1804

ELBOW

Incl. 33

1шт.

33

154503A1

O-RING

1шт.

34

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

35

KBV1860

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.

36

KBV1823

HYDRAULIC CYLINDER

Left Hand, See Figure 08-87

1шт.

37

155210A1

O-RING

1шт.

38

KBV1859

MANIFOLD

1шт.

39

863-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

4шт.

40

152924A1

PLUG

Incl. 41

1шт.

41

154503A1

O-RING

1шт.

42

153105A1

PLUG

Incl. 43

1шт.

43

154475A1

O-RING

1шт.

44

155211A1

O-RING

1шт.

45

KBV1857

VALVE

See Figure 08-83

1шт.

46

161955A1

FLANGE

Flat

1шт.

47

862-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

4шт.

48

KHJ1804

ELBOW

Incl. 49

1шт.

49

154503A1

O-RING

1шт.

50

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

51

KBV1861

TUBE ASSY.,20.8 mm ID x 27.2 mm OD

1шт.
