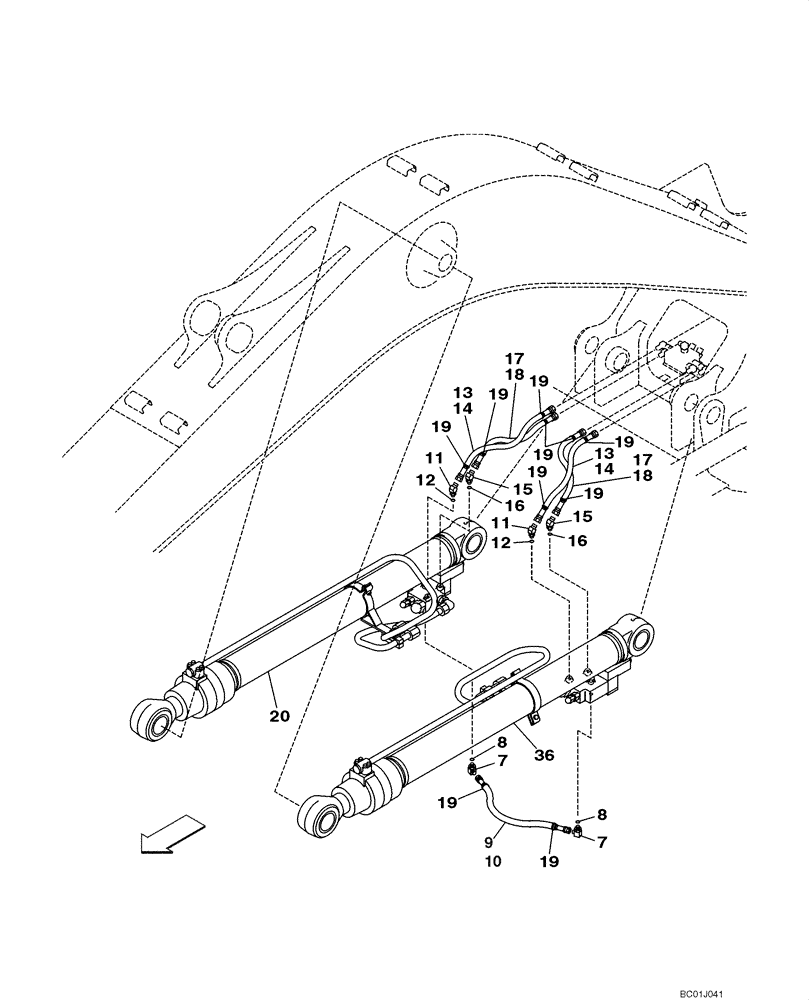

Запчасти Case CX290 (08-11) - HYDRAULICS - BOOM CYLINDER LINE (08) - HYDRAULICS

Models With Load Hold

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 8

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

157845A1

HOSE ASSY.,6.30 mm ID x 750.00 mm

1шт.

10

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

1шт.

11

157584A1

ELBOW

Incl. 12

2шт.

12

154475A1

O-RING

1шт.

13

KHJ1567

HYDRAULIC HOSE,9.52 mm ID x 800.00 mm

2шт.

14

150773A1

PLASTIC-RUBBER TUBE

2шт.

15

161087A1

ELBOW

Incl. 16

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

167871A1

HYDRAULIC HOSE,19.00 mm ID x 700.00 mm

2шт.

18

157767A1

PLASTIC-RUBBER TUBE

2шт.

19

150067A1

MOUNTING CLIP

150 mm (6 in)

10шт.

20

KBV1822

HYDRAULIC CYLINDER

Boom, Right Hand, See Figure 08-88

1шт.

36

KBV1823

HYDRAULIC CYLINDER

Boom, Left Hand, See Figure 08-87

1шт.
