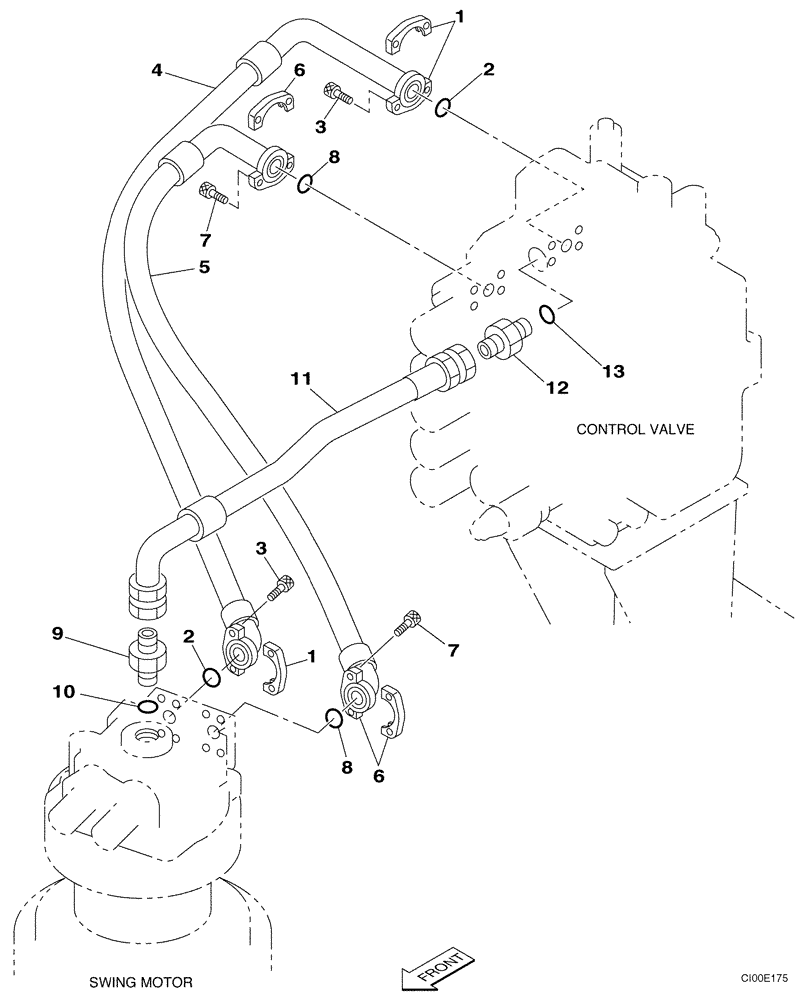

Запчасти Case CX290 (08-09) - HYDRAULICS - SWING (08) - HYDRAULICS

1

153458A1

FLANGE

Split

4шт.

2

155210A1

O-RING

2шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

4

KBJ2942

HYDRAULIC HOSE,19mm ID x 720mm L

1шт.

5

KBJ2943

HYDRAULIC HOSE,19.00 mm ID x 570.00 mm

1шт.

6

153459A1

FLANGE

Split

4шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

8

155211A1

O-RING

2шт.

9

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 10

1шт.

10

154523A1

O-RING

1шт.

11

KAJ2390

HYDRAULIC HOSE,25.40 mm ID x 520.00 mm

1шт.

12

153001A1

ADAPTER

Incl. 13

1шт.

13

154503A1

O-RING

1шт.
