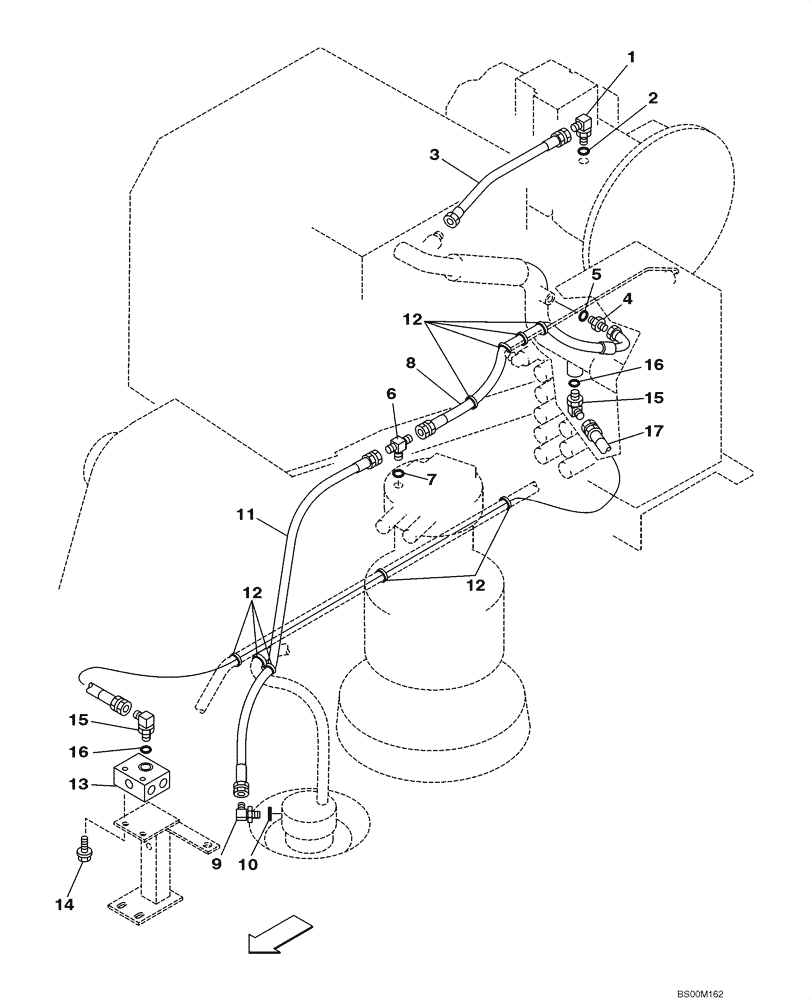

Запчасти Case CX290 (08-08) - HYDRAULICS - DRAIN LINE (08) - HYDRAULICS

Models With Load Hold

1шт.

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KNJ2969

HYDRAULIC HOSE,19.00 mm ID x 580.00 mm

1шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

169309A1

TEE

Incl. 7

1шт.

7

154487A1

O-RING

1шт.

8

KBJ2764

HYDRAULIC HOSE,12.70 mm ID x 1150.00 mm

1шт.

9

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 10

1шт.

10

154487A1

O-RING

1шт.

11

162226A1

HYDRAULIC HOSE,12.70 mm ID x 1100.00 mm

1шт.

12

150071A1

MOUNTING CLIP

1шт.

13

KNJ2868

MANIFOLD VALVE

1шт.

14

166351A1

BOLT,Sems, M10 x 20mm

With Attached Washer

2шт.

15

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 16

2шт.

16

154487A1

O-RING

1шт.

17

165933A1

HYDRAULIC HOSE,12.70 mm ID x 1960.00 mm

1шт.
