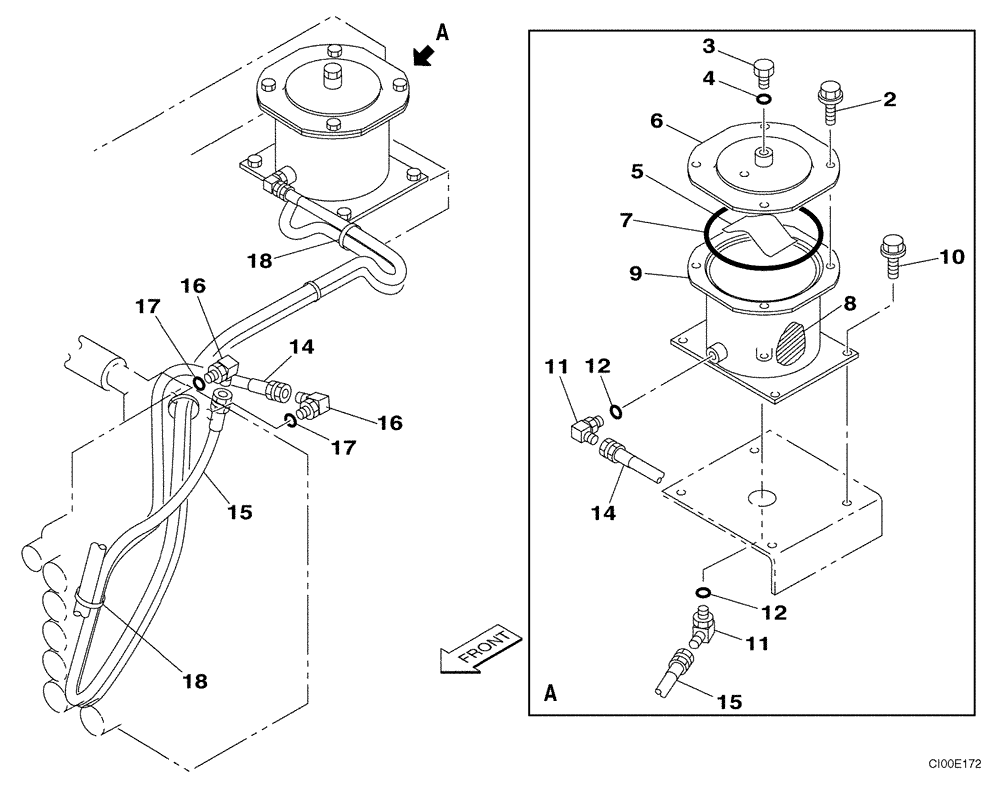

Запчасти Case CX290 (08-06) - HYDRAULICS - BYPASS FILTER (08) - HYDRAULICS

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

3

159285A1

PLUG

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1588

SPRING

1шт.

6

KHJ1564

COVER

1шт.

7

KHJ1404

O-RING

1шт.

8

KHJ1400

HYDRAULIC OIL FILTER

1шт.

9

KHJ1563

CASE

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 12

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

KAJ3241

HYDRAULIC HOSE

1шт.

15

159007A1

HOSE

1шт.

16

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 17

2шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

150071A1

MOUNTING CLIP

2шт.
