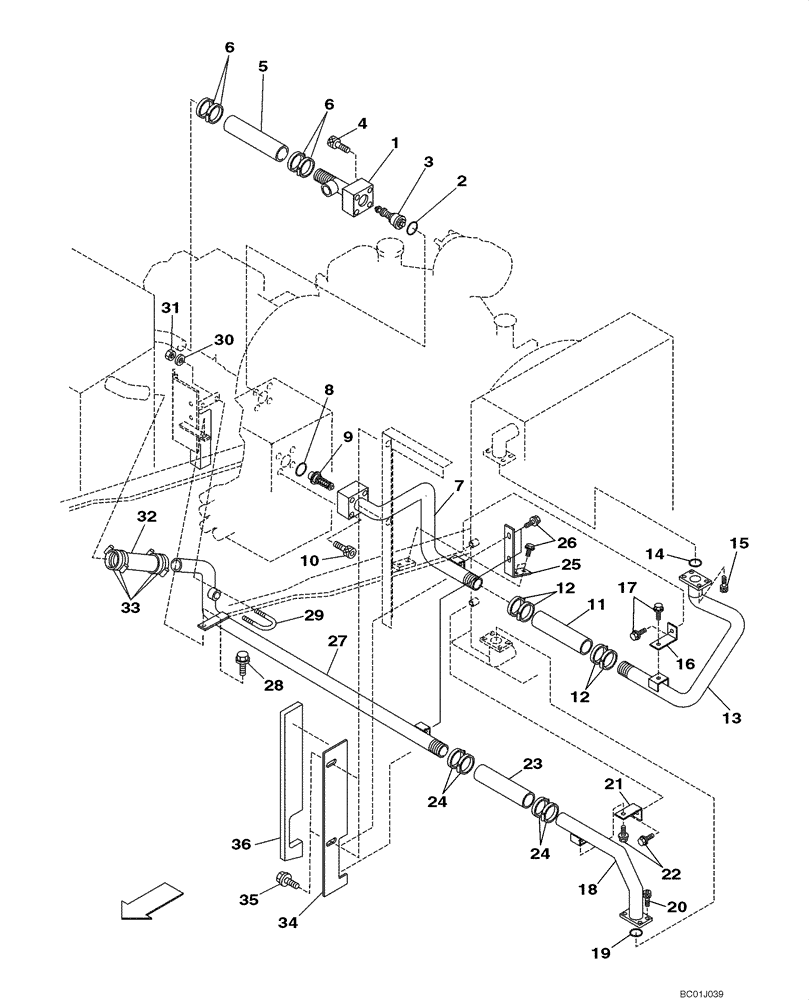

Запчасти Case CX290 (08-05) - HYDRAULICS - RESERVOIR RETURN (08) - HYDRAULICS

1

KRJ6474

HYD TUBE,35.7 mm ID x 42.7 mm OD

1шт.

2

154641A1

O-RING

1шт.

3

159054A1

VALVE

1шт.

4

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

5

158803A1

HOSE

265 mm (10-7/16 in)

1шт.

6

157287A1

COLLAR

4шт.

7

KBJ2959

TUBE ASSY.

1шт.

8

154609A1

O-RING

1шт.

9

159056A1

VALVE

1шт.

10

862-10060

HEX SOC SCREW,M10 x 60mm, Cl 12.9

4шт.

11

153221A1

HOSE

1шт.

12

157287A1

COLLAR

4шт.

13

KBJ2960

TUBE ASSY.

1шт.

14

154609A1

O-RING

1шт.

15

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

16

KBJ2965

BRACKET

1шт.

17

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

18

KBJ2961

TUBE ASSY.

1шт.

19

154609A1

O-RING

1шт.

20

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

21

KBJ2966

BRACKET

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

23

153221A1

HOSE

1шт.

24

157287A1

COLLAR

4шт.

25

KBJ2964

BRACKET

1шт.

26

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

27

KBJ2962

TUBE ASSY.

1шт.

28

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

29

152065A1

U-BOLT,M10 x 56mm W x 68mm L

BOLT "U"

1шт.

30

150409A1

WASHER

10,5 x 21 x 3,2 mm

2шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

32

158803A1

HOSE

265 mm (10-7/16 in)

1шт.

33

157287A1

COLLAR

4шт.

34

KBJ2967

BRACKET

1шт.

35

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

36

KBJ2968

FOAM

Cushion

1шт.
