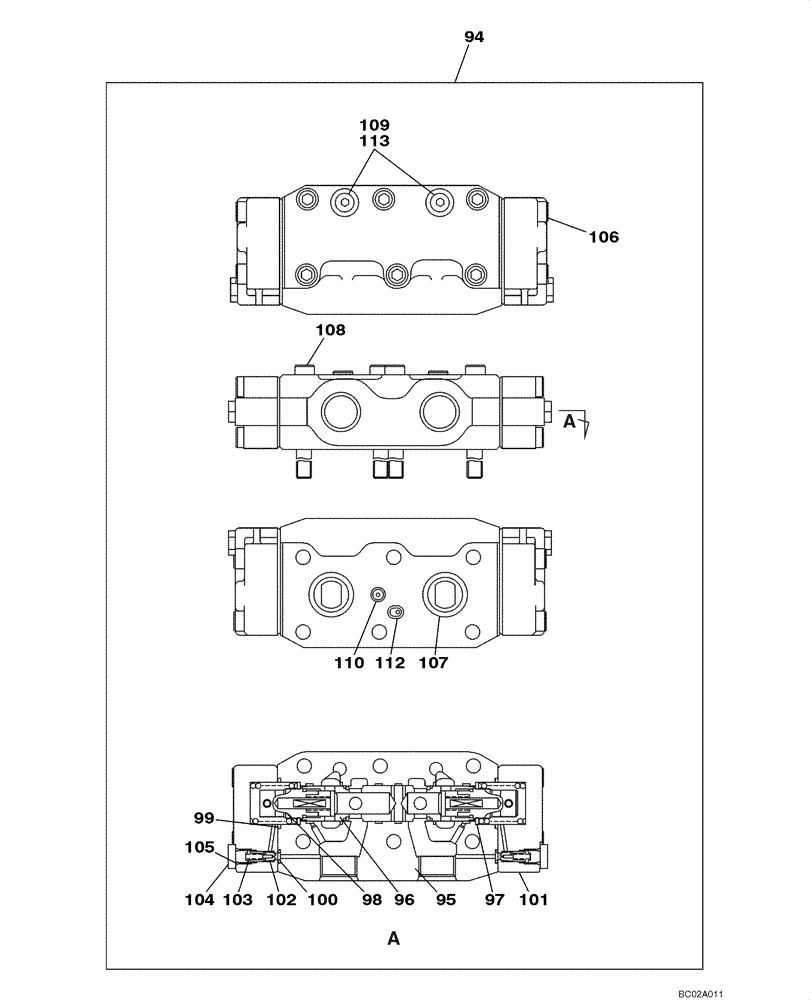

Запчасти Case CX290 (06-05) - TRANSMISSION ASSY - VALVE, BRAKE (06) - POWER TRAIN

KBA1137

MOTO-REDUCTION GEAR

Incl. 94 - 113, Also Includes Parts On Figures 06-02 - 06-04

2шт.

94

LJ00964

VALVE

Incl. 95 - 113

1шт.

95

LR00867

VALVE BODY

1шт.

96

LJ00965

SPOOL

1шт.

97

LR00868

SPRING SEAT

2шт.

98

LG00434

COMPRESSION SPRING

2шт.

99

154569A1

O-RING

2шт.

100

154459A1

O-RING

2шт.

101

LW00384

CONTROL BLOCK

2шт.

102

LK00389

RESTRICTOR

2шт.

103

LG00435

COMPRESSION SPRING

2шт.

104

LK00390

PLUG

2шт.

105

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

106

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

8шт.

107

154549A1

O-RING

2шт.

108

863-12110

HEX SOC SCREW,M12 x 110mm, Cl 12.9

6шт.

109

LK00391

PLUG

2шт.

110

154459A1

O-RING

1шт.

112

154463A1

O-RING

1шт.

113

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.
