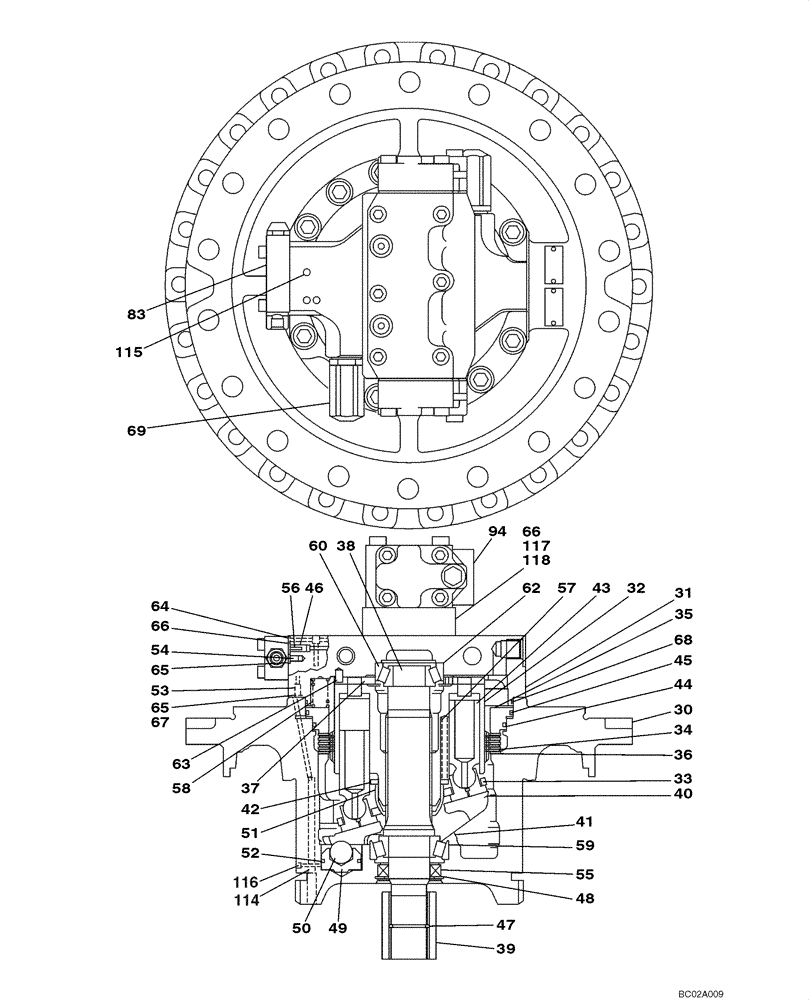

Запчасти Case CX290 (06-03) - TRANSMISSION ASSY - MOTOR, PISTON (06) - POWER TRAIN

KBA1137

MOTO-REDUCTION GEAR

Incl. 30 - 118, Also Includes Parts 06-2, 6-04, 6-05

2шт.

LJ00953

HYDRAULIC MOTOR

Piston, Incl. 30 - 94

1шт.

30

LW00382

MOTOR HOUSING

1шт.

31

LW00383

REAR COVER

1шт.

32

LS00206

CYLINDER BLOCK

1шт.

33

LH00320

RETAINER

1шт.

34

LR00858

PLATE

4шт.

35

LJ00954

PISTON

1шт.

36

LR00859

ADJUSTING PLATE

5шт.

37

LR00860

PLATE

1шт.

38

LB00792

DRIVE SHAFT

1шт.

39

LB00793

COUPLING FLANGE

1шт.

40

LR00861

PLATE

1шт.

41

LB00794

BEARING, ROLLER

2шт.

42

LR00862

SPRING SEAT

1шт.

43

LJ00955

PISTON

9шт.

44

LE012900

SEALING RING

SEALRING Replaces LE00994

1шт.

45

LE012910

SEALING RING

SEALRING Replaces LE00995

1шт.

46

LJ00956

VALVE, CHECK

3шт.

47

800-2140

SNAP RING,M40, Int

1шт.

48

800-2168

SNAP RING,M68, Int

1шт.

49

LJ00957

PISTON

1шт.

50

LX00044

BALL

1шт.

51

LB00795

BALL JOINT

1шт.

52

LE00996

SEAL

1шт.

53

LK00384

RESTRICTOR

1шт.

54

LK00385

RESTRICTOR

1шт.

55

LE00997

OIL SEAL

1шт.

56

LG00429

COMPRESSION SPRING

3шт.

57

LG00430

COMPRESSION SPRING

9шт.

58

LG00431

COMPRESSION SPRING

14шт.

59

LB00796

TAPERED BEARING,45mm ID x 85mm OD x 24.75mm W

1шт.

60

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

61

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

Not Illustrated

10шт.

62

LH00321

SHIM

1шт.

63

837-8012

DOWEL,M8 x 12

1шт.

64

154447A1

O-RING

3шт.

65

154455A1

O-RING

2шт.

66

154459A1

O-RING

5шт.

67

LE00998

O-RING

1шт.

68

LE00999

O-RING

1шт.

69

LJ00958

VALVE, PRESSURE RELI

EF See Figure 06-04

2шт.

83

LJ00962

VALVE

See Figure 06-04

1шт.

94

LJ00964

VALVE

See Figure 06-05

1шт.

114

LK00392

PLUG

1шт.

115

LK00393

PLUG

4шт.

116

LK00394

PLUG

1шт.

117

LH00324

SPACER

1шт.

118

154549A1

O-RING

2шт.
