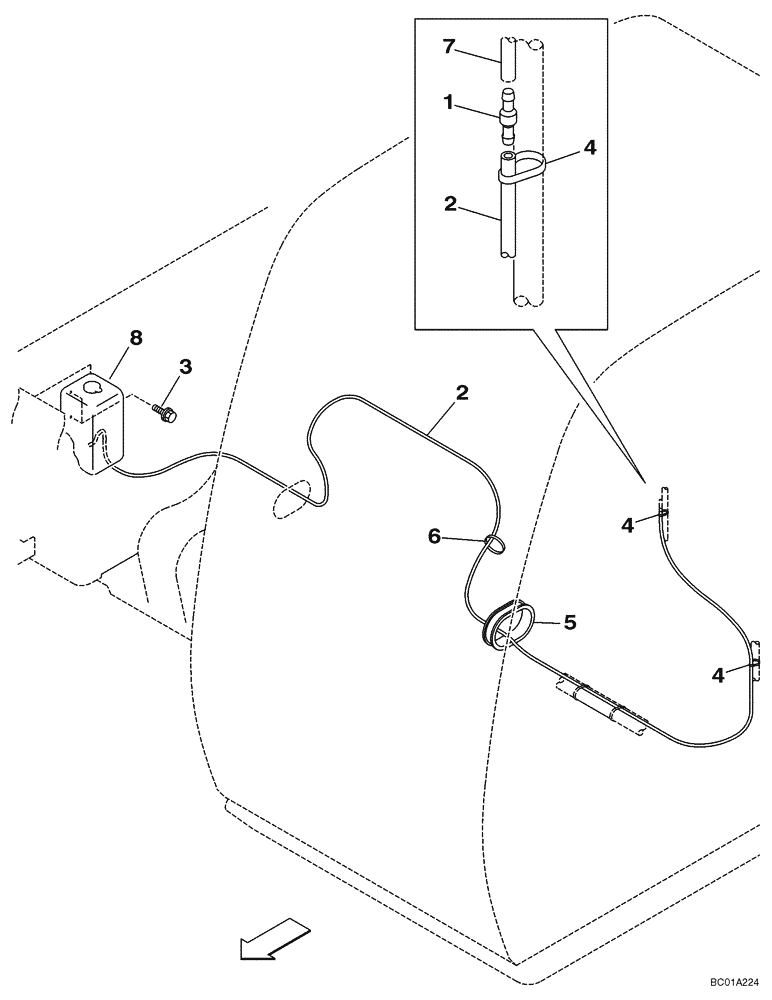

Запчасти Case CX290 (04-16) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

152824A1

ADAPTER

1шт.

2

152829A1

HOSE,4 mm ID, 7 mm OD, 3500 mm Length

3500 mm (137-7/8 in), Cut From 162127A1

1шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

4

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

5

KBJ2788

GROMMET

1шт.

6

150496A1

MOUNTING CLIP

250 mm (10 in)

1шт.

7

KHN2747

HOSE

See Figure 04-10, REF 123

1шт.

8

161374A1

RESERVOIR ASSY.

See Figure 04-10, REF 19

1шт.
