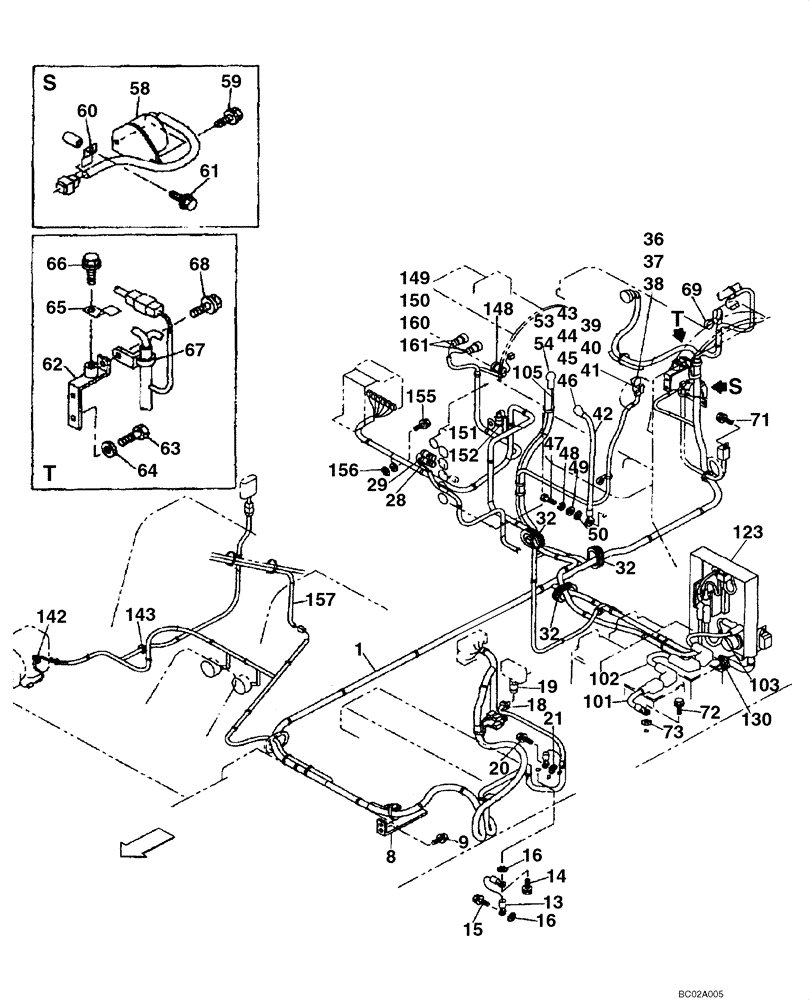

Запчасти Case CX290 (04-05) - HARNESS, MAIN - CHASSIS, UPPERSTRUCTURE (04) - ELECTRICAL SYSTEMS

1

KBR0749

HARNESS

1шт.

8

KRR1251

BRACKET

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

13

KHR2713

ELECTRIC CABLE

1шт.

14

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

15

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

16

893-11006

LOCK WASHER,Ext Tooth, M6

2шт.

18

KMR0307

GROMMET

1шт.

19

159599A1

PRESSURE SWITCH

Auxiliary/Swing

1шт.

19

KHR10790

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

20

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

21

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

28

159899A1

PRESSURE SWITCH

Pressure, Upper

1шт.

28

KHR10800

PRESSURE SWITCH

Use If Switch Has A Pigtail Connector

1шт.

29

159900A1

PRESSURE SWITCH

Pressure, Travel (Back-up Alarm)

1шт.

29

KHR10810

PRESSURE SWITCH

SENSOR, Use If Switch Has A Pigtail Connector

1шт.

32

KRH1393

GROMMET

3шт.

36

892-11008

LOCK WASHER,8mm ID

1шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

38

159182A1

DUST CAP

1шт.

39

892-11005

LOCK WASHER,M5

1шт.

40

825-1405

NUT,M5, Cl 8

1шт.

41

159176A1

CAP

1шт.

42

KHR3267

CABLE ASSY.

Ground

1шт.

43

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

44

892-11012

LOCK WASHER,M12

1шт.

45

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

46

893-11012

LOCK WASHER,Ext Tooth, M12

1шт.

47

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

48

892-11012

LOCK WASHER,M12

1шт.

49

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

50

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

53

159185A1

CAP

1шт.

54

892-11010

LOCK WASHER,M10

1шт.

58

KHR3231

ALARM

1шт.

59

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

60

165405A1

CLIP

1шт.

61

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

62

KRR1407

BRACKET

1шт.

63

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

64

150811A1

WASHER

M12

2шт.

65

KHR3748

COLLAR

1шт.

66

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

67

KHR2582

CLAMP

1шт.

68

KHJ2298

BOLT,Spcl

1шт.

69

159182A1

DUST CAP

1шт.

71

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

72

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

73

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

101

KHR2797

ELECTRIC CABLE

1шт.

102

KHR2430

ELECTRIC CABLE

1шт.

103

KHR3264

CABLE

1шт.

105

KHR3810

ELECTRIC CABLE

See Figure 04-07

1шт.

123

REF

INSTRUCTION

Relay Assy, See Figure 04-07

1шт.

130

152966A1

GROMMET

1шт.

142

159656A1

GROMMET

1шт.

143

KMR0307

GROMMET

1шт.

148

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

149

168135A1

SENSOR,50 MPa

Pressure

2шт.

150

154475A1

O-RING

1шт.

151

KHR2915

SENSOR,5 MPa

Pressure (neg-cont.)

1шт.

152

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

155

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

156

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

157

KHR3170

HARNESS

1шт.

160

KHJ1584

UNION

Incl.161

2шт.

161

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
