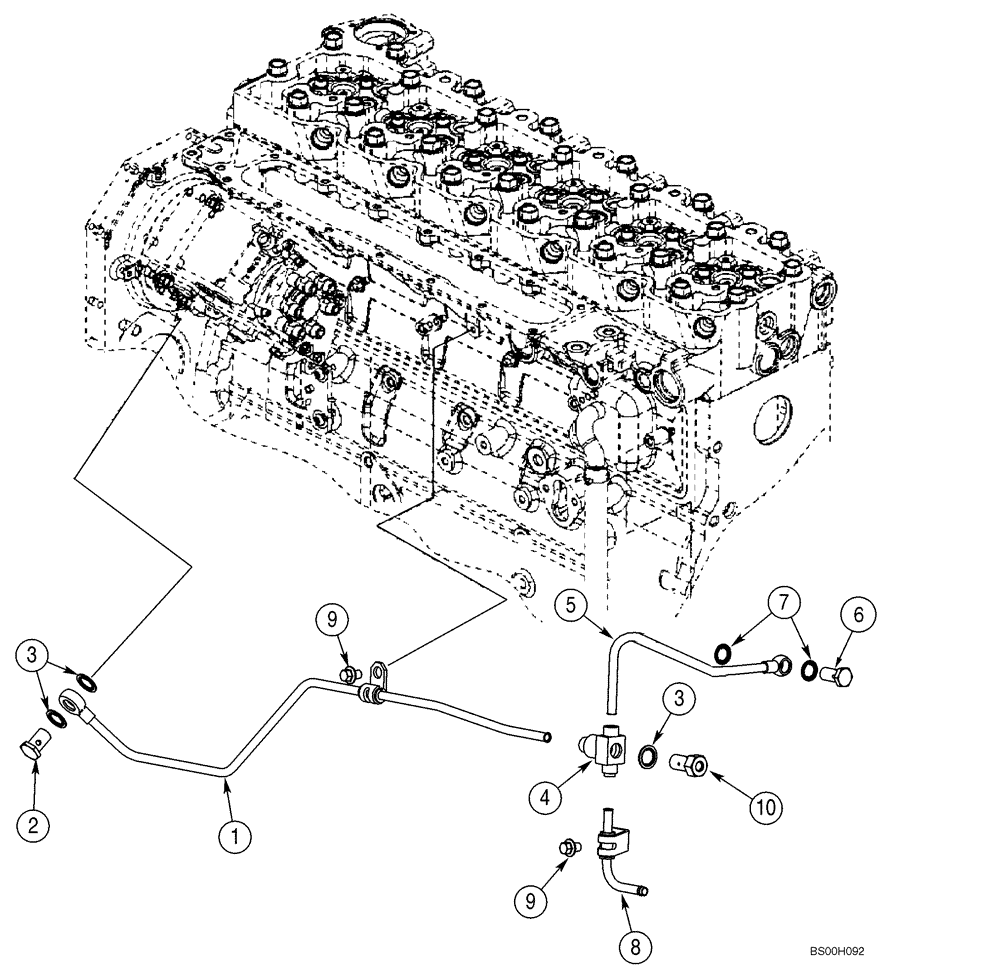

Запчасти Case CX290 (03-07) - FUEL LINES (03) - FUEL SYSTEM

0

6TAA-5904 Emissions Certified Engine

1шт.

1

87560935

TUBE,0.315" OD

Replaces J948604

1шт.

2

J942143

BANJO BOLT

1шт.

3

J937155

PACKING RING

3шт.

4

J948541

FITTING

(Uses sleeve p/n 222-103 & nut p/n 222-113)

1шт.

5

J942966

FUEL TUBE,8 mm OD x 227.7 mm L

1шт.

6

J903035

BANJO BOLT

M12 x 24

1шт.

7

J935171

SEALING WASHER

12 x 19 x 1,5 mm

2шт.

8

J942598

FUEL TUBE,8 mm OD x 41.1, 35 mm L

1шт.

9

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

10

J941156

VALVE, CHECK

1шт.
