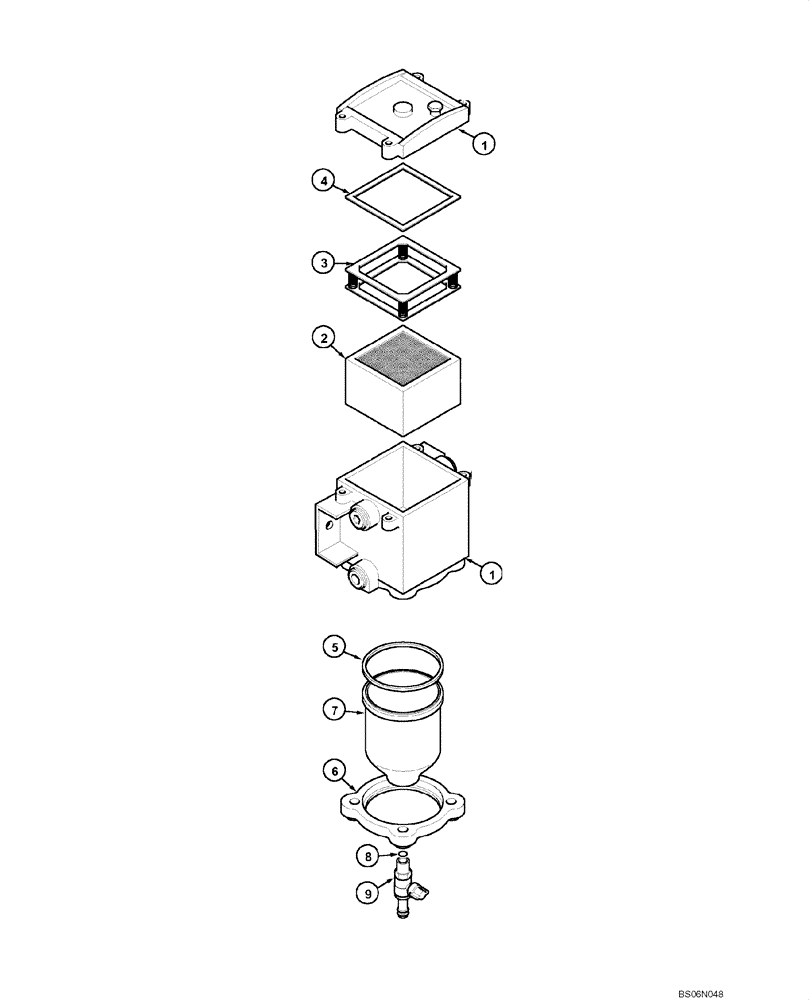

Запчасти Case CX290 (03-02C) - FUEL FILTER (P.I.N. DAC291269 - ) (03) - FUEL SYSTEM

1

336429A2

FUEL FILTER

Incl. 2 - 9

1шт.

2

336430A1

FUEL FILTER

1шт.

3

336431A1

FRAME

1шт.

4

336432A1

GASKET

1шт.

5

336433A1

SEAL,70mm ID x 78mm OD x 3mm Thk

1шт.

6

369841A1

RETAINER

1шт.

7

369842A1

FILTER BOWL

1шт.

8

369843A1

O-RING,2.5mm Thk x 10.5mm ID

1шт.

9

369844A1

DRAINCOCK/TAP SUPPLY

1шт.

87625617

THUMB SCREW

Used For Filter Cap

4шт.
