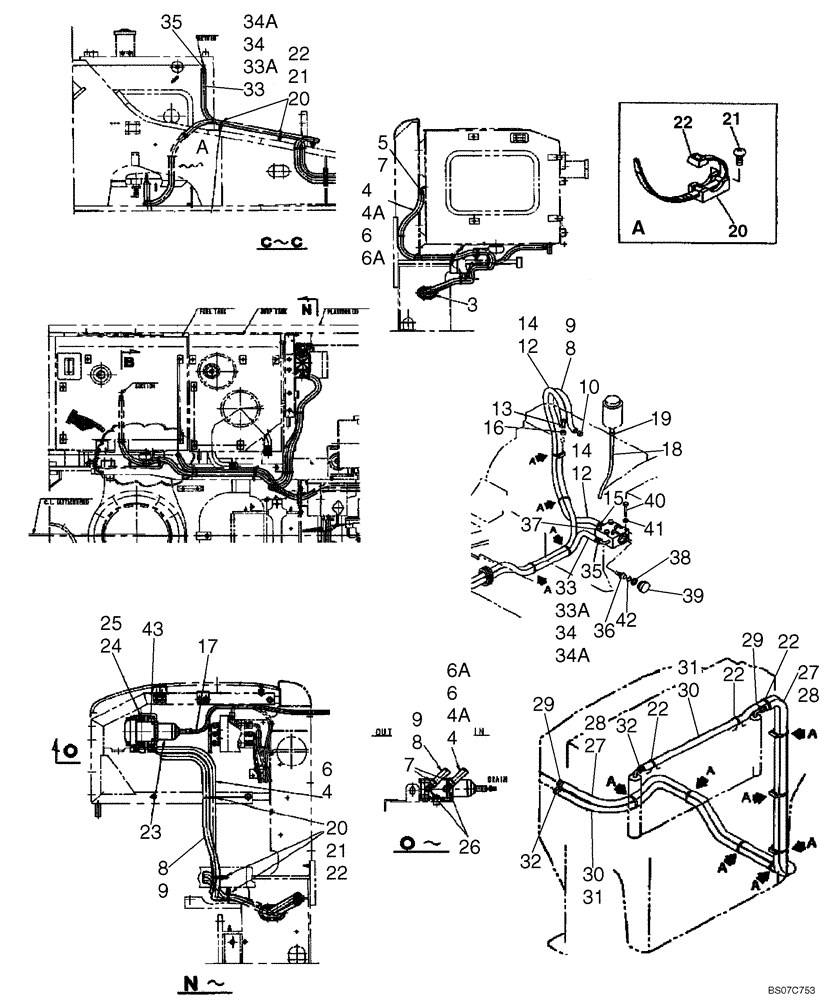

Запчасти Case CX290 (03-02A) - FUEL LINES (P.I.N. DAC291269 - ) (03) - FUEL SYSTEM

3

KRH1268

GROMMET

1шт.

4

KHH0502

FUEL HOSE

No Longer Used, For Service Order KHH11200

1шт.

4a

KHH11200

FUEL HOSE

1шт.

5

KHH0417

SPACER

1шт.

6

157923A1

PLASTIC-RUBBER TUBE

Used With Ref 4, KHH0522 Hose

1шт.

6a

KMR0849

PLASTIC-RUBBER TUBE

Used With Ref 1A, KHH11200

1шт.

7

KHH0438

HOSE CLIP

3шт.

8

KHH10310

FUEL HOSE

1шт.

9

151595A1

PLASTIC-RUBBER TUBE

1шт.

10

KHH0418

HOSE CLIP

1шт.

12

KHH0481

FUEL HOSE

1шт.

13

151470A1

SPACER

1шт.

14

158062A1

PLASTIC-RUBBER TUBE

1шт.

15

KHH0405

MOUNTING CLIP

1шт.

16

157704A1

CLAMP

1шт.

17

157628A1

FUEL TUBE,9.5 mm ID, 14.5 mm OD

650 mm (25-1/2 in); Cut From 150613A1

1шт.

18

150066A1

HOSE,7.00 mm ID x 800.00 mm

Cut From 157487A1

1шт.

19

150067A1

MOUNTING CLIP

150 mm (6 in)

2шт.

20

150860A1

COLLAR

17шт.

21

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

17шт.

22

150496A1

MOUNTING CLIP

250 mm (10 in)

21шт.

23

336429A2

FUEL FILTER

See Figure 03-02C

1шт.

24

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

25

KHH10390

WASHER

2шт.

26

86977972

FITTING,90 Degree, 1/2" Hose x 3/4"-16 ORB Beaded

2шт.

27

KHH0420

FUEL HOSE

1шт.

28

158068A1

PLASTIC-RUBBER TUBE

1шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH0416

FUEL HOSE

1шт.

31

158069A1

PLASTIC-RUBBER TUBE

1шт.

32

KHH0405

MOUNTING CLIP

2шт.

33

KHH0443

FUEL HOSE

No Longer Used, Order KHH10260

1шт.

33a

KHH10260

FUEL HOSE,2050.00 mm

1шт.

34

158066A1

PLASTIC-RUBBER TUBE

2300 mm (90-5/8 in); Used With Ref 33, KHH0443 Hose

1шт.

34a

158065A1

PLASTIC-RUBBER TUBE

Used With Ref 33A, KHH10260 Hose

1шт.

35

KHH0405

MOUNTING CLIP

2шт.

36

KBH0950

VALVE

1шт.

37

KBH0952

MANIFOLD

1шт.

38

KBH0953

O-RING

1шт.

39

162335A1

PLUG

1шт.

40

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

41

150409A1

WASHER

10,5 x 21 x 3,2 mm

4шт.

42

KHH0498

O-RING

1шт.

43

214389

PLUG,3/4" - 16 ORB

2шт.
