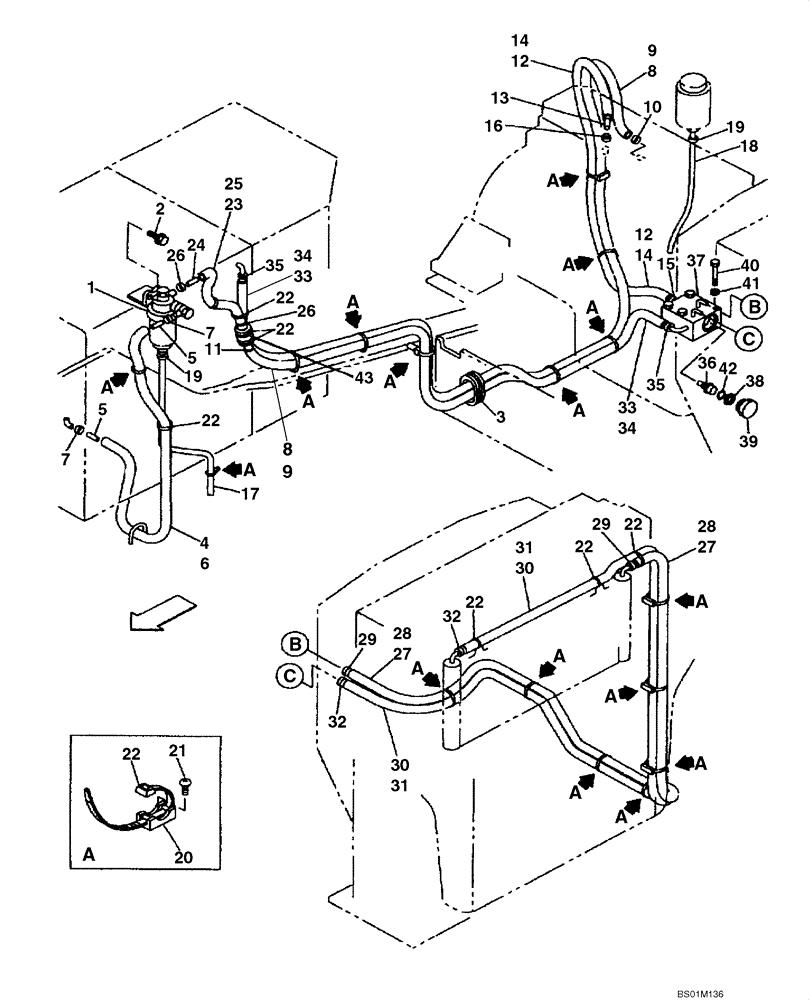

Запчасти Case CX290 (03-02) - FUEL LINES (P.I.N. DAC 0729101 - DAC291268) (03) - FUEL SYSTEM

1

KRH1343

WATER TRAP

See Figure 03-02B

1шт.

2

167182A1

BOLT,Sems, M8 x 25mm

With Attached Washer

2шт.

3

KRH1268

GROMMET

1шт.

4

KHH0414

FUEL HOSE

1шт.

5

KHH0417

SPACER

2шт.

6

150441A1

PLASTIC-RUBBER TUBE

1шт.

7

KHH0438

HOSE CLIP

2шт.

8

KHH0503

FUEL HOSE

Replaces KHH0480

1шт.

9

157308A1

PLASTIC-RUBBER TUBE

1шт.

10

KHH0418

HOSE CLIP

1шт.

11

KHH0438

HOSE CLIP

1шт.

12

KHH0481

FUEL HOSE

1шт.

13

151470A1

SPACER

1шт.

14

158070A1

PLASTIC-RUBBER TUBE

1шт.

15

KHH0405

MOUNTING CLIP

1шт.

16

157704A1

CLAMP

1шт.

17

157634A1

TUBE

Cut From 150613A1

1шт.

18

150066A1

HOSE,7.00 mm ID x 800.00 mm

Cut From 157487A1

1шт.

19

150067A1

MOUNTING CLIP

150 mm (6 in)

21шт.

20

150860A1

COLLAR

16шт.

21

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

16шт.

22

150496A1

MOUNTING CLIP

250 mm (10 in)

23шт.

23

KHH0472

FUEL HOSE

1шт.

24

KHH0417

SPACER

1шт.

25

157491A1

TUBE,500 mm Length

1шт.

26

KHH0438

HOSE CLIP

2шт.

27

KHH0420

FUEL HOSE

1шт.

28

158068A1

PLASTIC-RUBBER TUBE

1шт.

29

KHH0405

MOUNTING CLIP

2шт.

30

KHH0416

FUEL HOSE

1шт.

31

158069A1

PLASTIC-RUBBER TUBE

1шт.

32

KHH0405

MOUNTING CLIP

2шт.

33

KHH0443

FUEL HOSE

1шт.

34

158066A1

PLASTIC-RUBBER TUBE

2300 mm (90-5/8 in)

1шт.

35

KHH0405

MOUNTING CLIP

2шт.

36

KBH0950

VALVE

1шт.

37

KBH0952

MANIFOLD

1шт.

38

KBH0953

O-RING

1шт.

39

162335A1

PLUG

1шт.

40

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

41

150409A1

WASHER

4шт.

42

KHH0498

O-RING

Replaces UJJ0429

1шт.

43

194199A1

FUEL FILTER

Inline

1шт.
