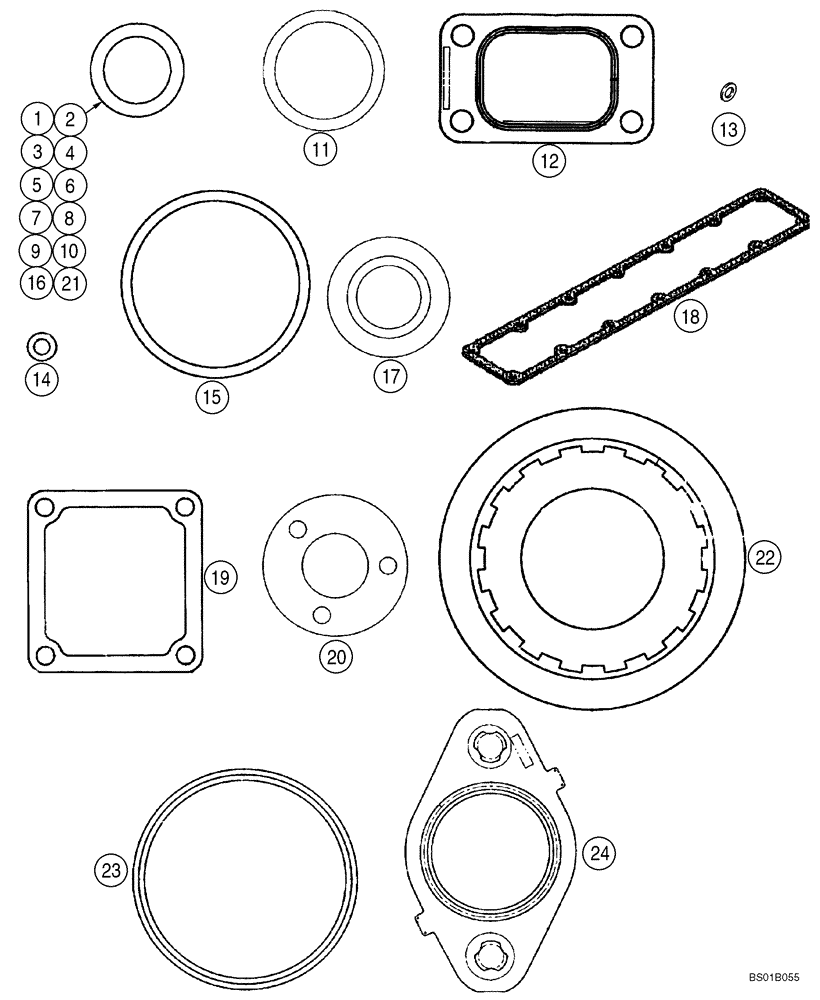

Запчасти Case CX290 (02-23) - GASKET KIT (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

Basic Service Engine

1шт.

A77997

GASKET KIT

Incl. 1 - 23

1шт.

1

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

Not Used In This Application

1шт.

2

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

See Figure 02-10, Ref. 16

1шт.

3

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 03-19, Ref. 2

6шт.

4

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk), See Figure 02-23, Ref 8

2шт.

5

J937706

GASKET,0.79mm Thk

See Figure 02-10, REF 11

1шт.

6

J330202

O-RING,11.3MM ID x 2.2 Thk

See Figure 04-03, Ref 5, 7

2шт.

7

J330478

O-RING,0.07" Thk x 0.676" ID

See Figure 04-03, REF 13, 15

2шт.

8

J678603

O-RING,2.2mm Thk x 9.3mm ID

See Figure 02-10, Ref 7

2шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

See Figure 04-03, Ref 9, 11

2шт.

10

J867043

SEAL,1.78mm Thk x 10.82mm ID

See Figure 03-03, REF 23

6шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

See Figure 02-10, REF 19

1шт.

12

J919369

GASKET,0.5mm Thk

See Figure 02-10, REF 2

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-13, REF 9

1шт.

14

J906659

SEAL

7 mm, See Figure 03-08, REF 3

6шт.

15

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-17, REF 42

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-19, REF 2

1шт.

17

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm, Not Used In This Application

3шт.

18

J938152

MANIFOLD GASKET

See Figure 02-09, REF 7

1шт.

19

J938158

GASKET

See Figure 02-09, REF 12

1шт.

20

J932512

GASKET

See Figure 02-13, REF 14

1шт.

21

J935032

SEAL

See Figure 03-06, REF 5

1шт.

22

J935171

SEALING WASHER

12 x 19 x 1,5 mm, See Figure 03-05, 3-07

8шт.

23

J942454

SEALING RING

See Figure 02-14, REF 13

1шт.

24

J946275

MANIFOLD GASKET

See Figure 02-09, REF 5

6шт.
