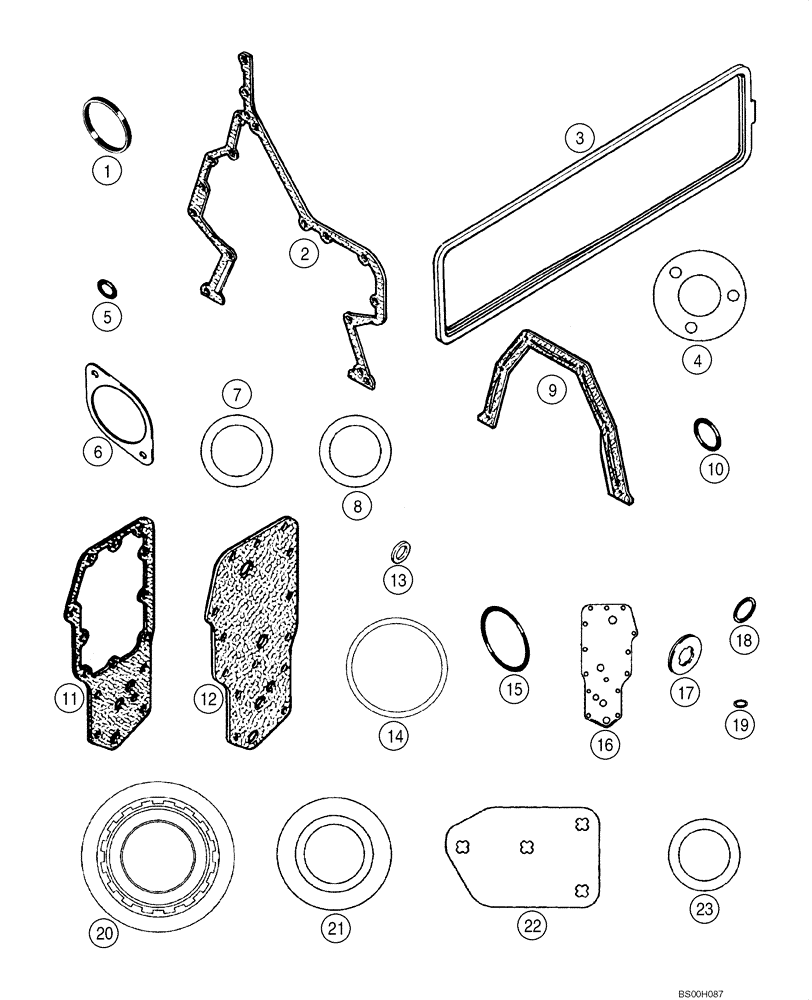

Запчасти Case CX290 (02-22) - GASKET KIT (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

A77978

GASKET KIT

Cylinder Block, Incl. 1 - 23

1шт.

1

J935032

SEAL

See Figure 03-06, REF 5

1шт.

2

J938156

GASKET,0.79mm Thk

See Figure 02-08, REF 10

1шт.

3

J284623

GASKET

See Figure 02-17, REF 28

1шт.

4

J932512

GASKET

See Figure 02-13, REF 14

1шт.

5

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used In This Application

1шт.

6

J938655

GASKET,1.27mm Thk

See Figure 02-08, REF 15

1шт.

7

J678912

O-RING,2.2mm Thk x 11.3mm ID

See Figure 02-17, Ref 20

1шт.

8

J330202

O-RING,11.3MM ID x 2.2 Thk

Not Used In This Application

2шт.

9

J938159

GASKET

See Figure 02-18, REF 11

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-17, REF 42

2шт.

11

J942914

GASKET

See Figure 02-12, REF 13

1шт.

12

J942915

GASKET

Not Used In This Application

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-13, REF 9

1шт.

14

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16, See Figure 02-07, REF3

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-19, REF 2

1шт.

16

J929792

GASKET,1.2mm Thk

See Figure 02-12, REF 11

1шт.

17

J928759

SEALING WASHER

See Figure 02-17, REF 29

6шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Figure 02-19, Ref 15

1шт.

19

J929457

O-RING

23/32 ID x 7/64, See Figure 02-12, REF 6

1шт.

20

J935171

SEALING WASHER

12 x 19 x 1,5 mm, See Figure 03-05, 03-07

10шт.

21

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm, Not Used In This Application

4шт.

22

J942885

GASKET

See Figure 03-05, REF 15

1шт.

23

J678925

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Not Used In This Application

3шт.
