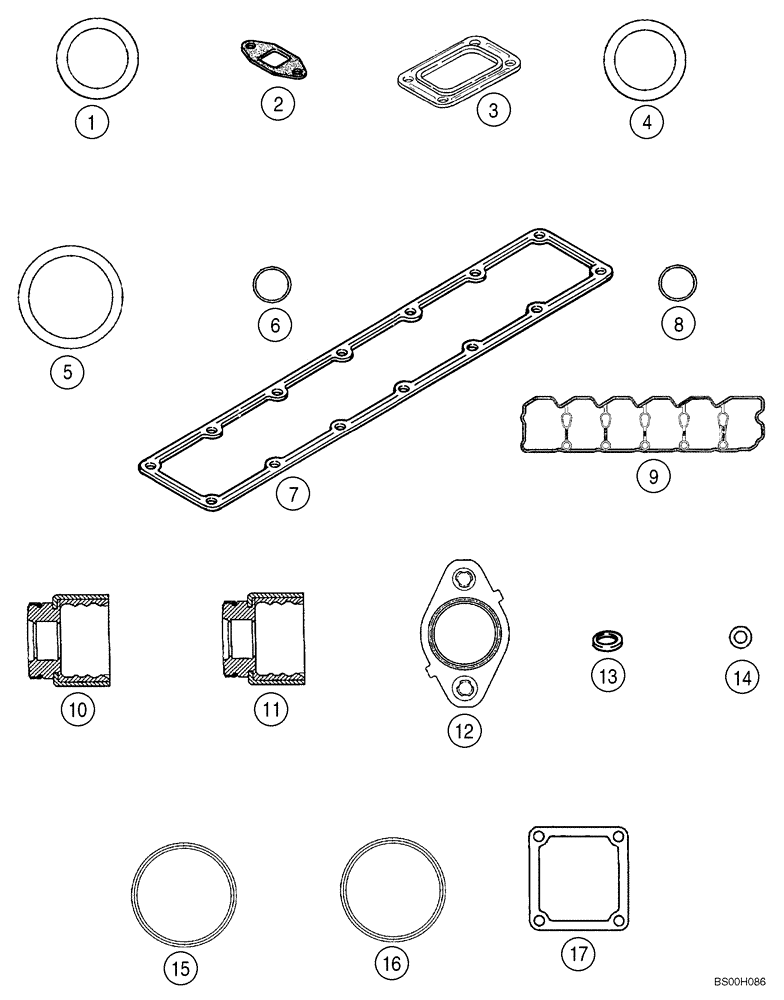

Запчасти Case CX290 (02-21) - GASKET KIT (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

Valve Grind

1шт.

87417071

GASKET KIT

Incl. 1 - 17, Replaces A77977

1шт.

2

J937706

GASKET,0.79mm Thk

See Figure 02-10, REF 11

1шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-10, REF 2

1шт.

4

J867043

SEAL,1.78mm Thk x 10.82mm ID

See Figure 03-03, REF 23

6шт.

5

J883284

O-RING,0.07" Thk x 2.364" ID, -36

See Figure 02-10, REF 19

1шт.

6

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk), See Figure 02-10, Ref 8

2шт.

7

J938152

MANIFOLD GASKET

See Figure 02-09, REF 7

1шт.

8

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

See Figure 02-10, Ref. 16

1шт.

9

J935878

GASKET,10.34mm Thk

See Figure 02-14, REF 3

1шт.

10

87417124

SEAL

SEAL, See Figure 02-15, REF 10, Replaces J942989

12шт.

11

87417125

SEAL

SEAL, See Figure 02-15, REF 11, Replaces J94543

12шт.

12

86991870

MANIFOLD GASKET

See Figure 02-09, REF 5, Replaces J946275

6шт.

13

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

7 mm, See Figure 03-08, REF 3, Replaces J906659

6шт.

14

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

See Figure 03-08, Ref. 2

6шт.

15

J942454

SEALING RING

See Figure 02-14, REF 13

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-08, REF 18

2шт.

17

87445995

GASKET

See Figure 02-09, REF 12, Replaces J938158

2шт.

1

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Not used in this application

2шт.
