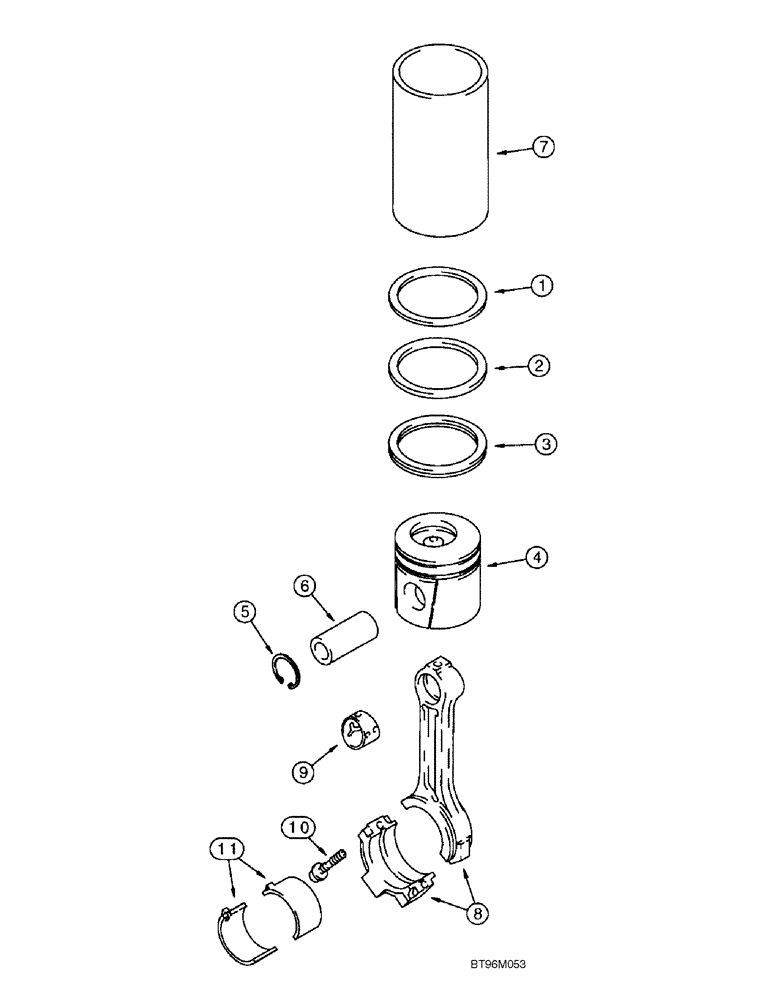

Запчасти Case CX290 (02-20) - PISTONS - CONNECTING RODS (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

J800333

PISTON ASSY.

Standard, Incl. 1 - 5

6шт.

J806285

PISTON RING SET

Standard, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

6шт.

J800336

PISTON ASSY.

Oversize 0,50 mm, Incl. 1 - 5

6шт.

J806213

PISTON RING SET

Oversize 0,50 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

6шт.

J800337

PISTON ASSY.

Oversize 1,00 mm, Incl. 1 - 5

6шт.

J806214

PISTON RING SET

Oversize 1,00 mm, Incl. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

3

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

4

NSS

NOT SOLD SEPARAT

Piston

1шт.

5

J920691

SPECIAL RING

2шт.

6

J934047

PIN,40mm OD x 82.68mm L

6шт.

7

J904166

SLEEVE

Repair

1шт.

Connecting Rods

1шт.

J942581

ROD, CONNECTING

Incl. 8 - 10

6шт.

84145405R

REMAN-CONNECTING ROD

CX290, Reman For New P/N J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

Rod

1шт.

9

J941476

BUSHING

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

M11 x 59

2шт.

11

A77465

BEARING SET

Standard

6шт.

11

A77466

BEARING SET

0,25 mm, Oversize 0,25

6шт.

11

A77467

BEARING LINER

0,50 mm, Oversize 0,50 mm

6шт.

11

A77468

BEARING SET

0,75 mm, Oversize 0,75

6шт.

11

A77469

BEARING SET

1,0 mm, Oversize 1,00 mm

6шт.
