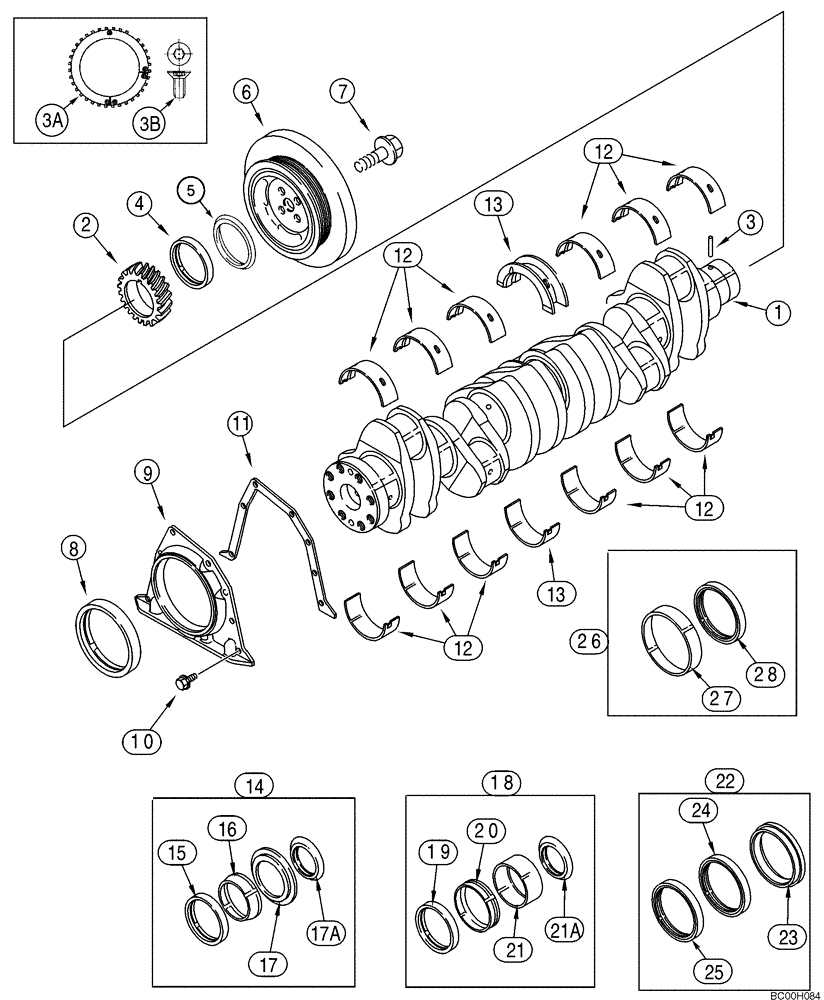

Запчасти Case CX290 (02-18) - CRANKSHAFT (02) - ENGINE

*

6TAA-5904 Emissions Certified Engine

1шт.

1

J944243

CRANKSHAFT

Engine, Incl. 2 - 3B

1шт.

1

JR944243

REMAN-CRANKSHAFT

1шт.

1

JC944243

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

3a

J942441

GEAR, RING

RING, GEAR Speed Indicator

1шт.

3c

J944203

SCREW,Flat , M5 x 0.8 x 12mm, Cl 10.9

5шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order REF 14

1шт.

5

NSS

NOT SOLD SEPARAT

Shield, Dust, Order REF 14

1шт.

6

J918999

DAMPER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

NSS

NOT SOLD SEPARAT

Seal, Order REF 22

1шт.

9

J936904

REAR COVER

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

J938159

GASKET

1шт.

12

A77405

CRANKSHAFT BEARING

Standard

6шт.

12

A77472

BEARING SET

0,25 mm, Undersize 0,25 mm

6шт.

12

A77474

BEARING SET

0,50 mm, Undersize 0,50 mm

6шт.

12

A77476

BEARING SET

0,75 mm, Undersize 0,75 mm

6шт.

12

A77478

BEARING SET

1,0 mm, Undersize 1,0 mm

6шт.

13

A77896

BEARING SET

Standard

1шт.

13

A77473

THRUST BEARING

0,25 mm, Undersize 0,25 mm

1шт.

13

A77475

THRUST BEARING

0,50 mm, Undersize 0,50 mm

1шт.

13

A77477

THRUST BEARING

0,75 mm, Undersize 0,75 mm

1шт.

13

A77479

THRUST BEARING

1,0 mm, Undersize 1,0 mm

1шт.

13

A77841

THRUST BEARING

0,50 mm, Undersize 0,50 mm, Oversize 0,50 mm

1шт.

13

A77840

THRUST BEARING

1,0 mm, Undersize 1,0 mm, Oversize 1,0 mm

1шт.

14

A77889

SEAL PACKAGE

Crankshaft, Front, Incl. 15 - 17A

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

17a

NSS

NOT SOLD SEPARAT

Shield, Dust

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Incl. 19 - 21A

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

21a

NSS

NOT SOLD SEPARAT

Shield, Dust

1шт.

22

J934486

SERVICE KIT

Crankshaft, Rear, Incl. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Seal

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Tool

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Seal

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.
