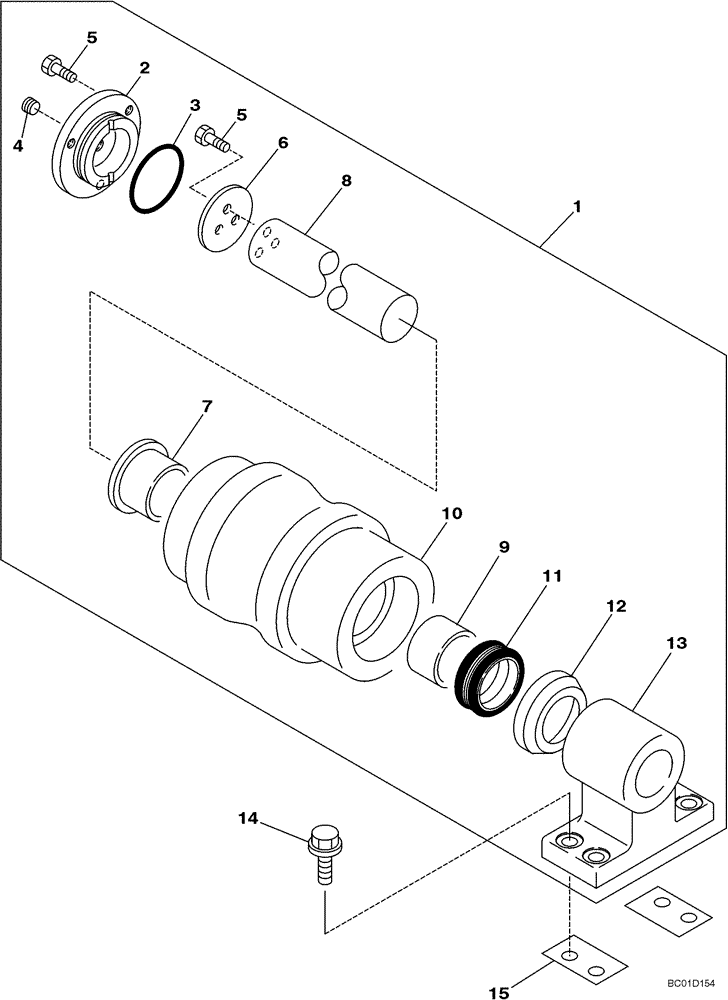

Запчасти Case CX290 (05-07) - TRACK - ROLLER (11) - TRACKS/STEERING

Upper

1шт.

1

KBA1141

ROLLER ASSY.

Incl. 2 - 13

4шт.

2

KTA1149

COVER

1шт.

3

154703A1

O-RING,0.001mm ID x 0.001mm Width

1шт.

4

150821A1

PLUG

1шт.

6

166555A1

PLATE, THRUST

1шт.

7

160423A1

BUSHING,65mm ID x 87mm OD x 69mm L

1шт.

8

166556A1

PIN

1шт.

9

166557A1

BEARING

1шт.

10

KTA1104

SHIFTER ROLLER

1шт.

11

166559A1

SEAL

1шт.

12

KBA1142

COLLAR

1шт.

13

KBA1143

CASING, BEARING ROLL

1шт.

14

105R020Y050R

BOLT

With Attached Washer

16шт.

15

KSA1147

SHIM

1шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.
