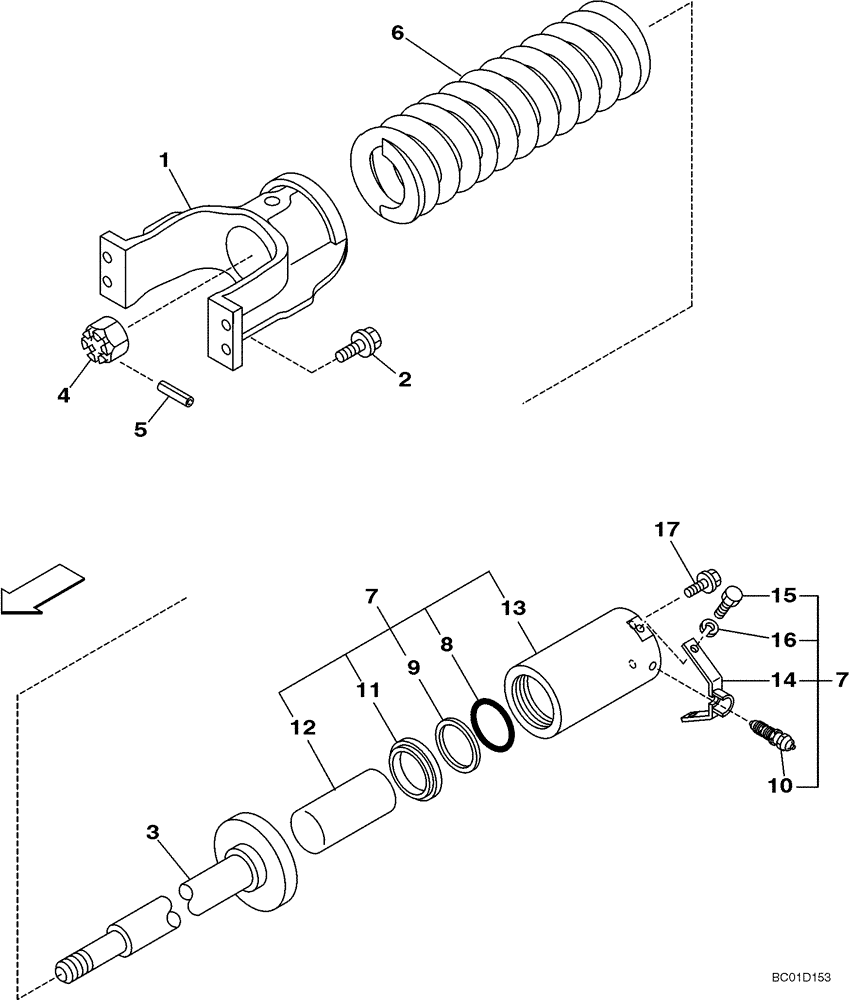

Запчасти Case CX290 (05-06) - TRACK - ADJUSTER (11) - TRACKS/STEERING

1

KSA1065

FORK

2шт.

2

165929A1

BOLT,Sems, M16

With Attached Washer

8шт.

3

KSA1066

ROD

2шт.

4

825-3064

SLOTTED NUT,M64 x 6, Cl 8

2шт.

5

538-816

LOCK PIN,M10 x 100, Slotted

2шт.

6

KSA1067

TENSION SPRING

Recoil

2шт.

7

162082A1

CYLINDER

Track Adjuster, Incl. 8 - 16

2шт.

8

154720A1

O-RING

1шт.

9

154145A1

BACK-UP RING

1шт.

10

150107A1

LUBE NIPPLE

1шт.

11

164260A1

SEAL

1шт.

12

164259A1

PISTON ROD

1шт.

13

164263A1

HYD CYL SLEEVE

1шт.

14

164264A1

BRACKET

1шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

16

892-11012

LOCK WASHER,M12

1шт.

17

166349A1

BOLT,Sems, M16 x 65mm

With Attached Washer

4шт.
