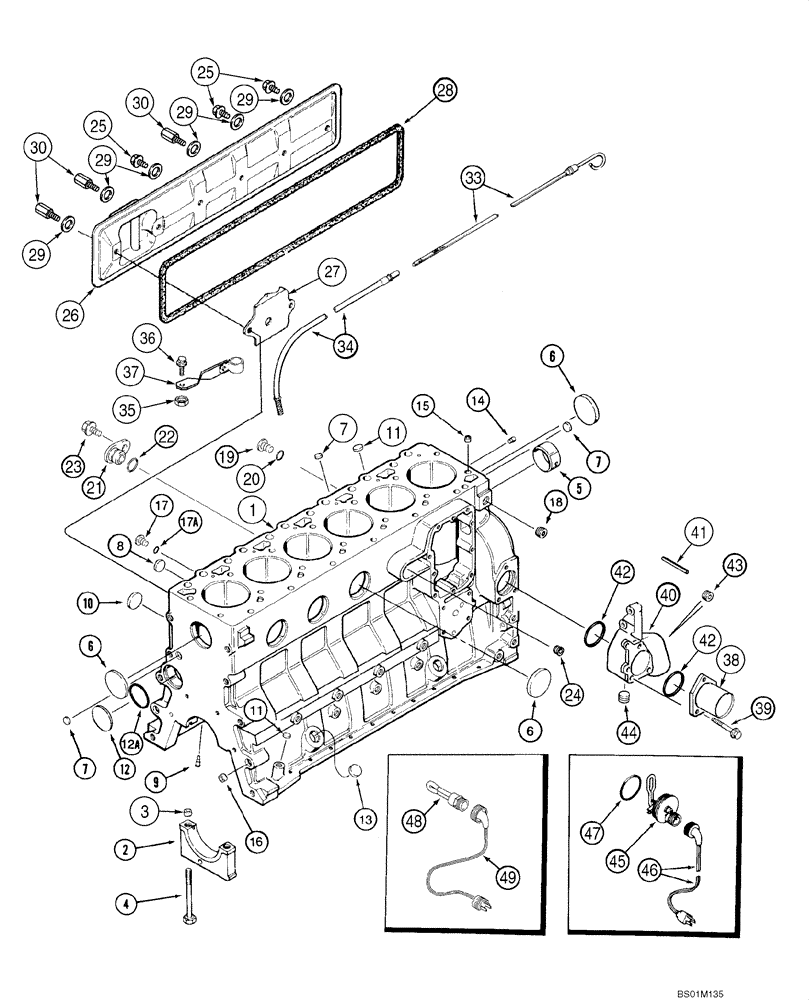

Запчасти Case CX290 (02-17) - CYLINDER BLOCK (02) - ENGINE

.

6TAA-5904 Emissions Certified Engine

1шт.

444022A1

Replaces 372230A1, Complete Engine, Includes All Parts Except Fan, Air Cleaner, Muffler and Exhaust Pipe, For Service Order 388889A1

1шт.

388889A1R

REMAN-BASIC ENGINE

Reman for New P/N 444022A1

1шт.

388889A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

388889A1

BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger; See Note

1шт.

JR938144

REMAN-SHORT ENGINE

Reman for New P/N 388889A1

1шт.

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number

1шт.

J938144

SKELETON ENGINE

Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings

1шт.

1

J937700

CYLINDER BLOCK

Stripped, Incl. 2 - 8, Also Order J933220

1шт.

2

J936791

BEARING CAP

Incl. 3

7шт.

3

J900068

BEARING WASHER

18 mm OD

2шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

5

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

See Figure 02-16

1шт.

6

A77782

PLUG

58 mm

5шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

J933220

PACKAGE,SERVICE

Incl. 9 - 24

1шт.

9

J937214

NOZZLE CAP

6шт.

10

J900958

PLUG

32 mm OD

1шт.

11

J900955

PLUG

10 mm OD

3шт.

12

41-3038

PLUG,Exp, 2 3/8"

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

13

J920706

PLUG

22 mm

3шт.

14

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

15

J902343

DOWEL

16 mm OD

2шт.

16

J900068

BEARING WASHER

18 mm OD

2шт.

17

J678923

PLUG,M10 x 1

10 mm, Includes 17A

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

A77429

PLUG

1/2 PT

1шт.

19

J678921

PLUG

14 mm, Includes 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

J932296

PLUG

Incl. 22

1шт.

22

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

23

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

24

A77505

PLUG

3/4 PT

1шт.

25

283264A1

BOLT

M8 x 14; 10.9

3шт.

26

J942506

COVER

Incl. 27

1шт.

27

J907586

BAFFLE

1шт.

28

J284623

GASKET

1шт.

29

J928759

SEALING WASHER

6шт.

30

J936236

SPACER

3шт.

33

J863456

DIPSTICK

1шт.

34

J283354

TUBE,12 mm OD x 901.8 mm L

Dipstick

1шт.

35

825-1408

NUT,M8, Cl 8

1шт.

36

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

37

J926051

BRACE

1/2

1шт.

38

J943148

PIPE ASSY.

Water Inlet

1шт.

39

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

3шт.

40

J943549

PIPE ASSY.

Water Inlet, Incl. 41

1шт.

41

38-31612

PIN,1/4" x 3/4", Coiled

2шт.

42

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

2шт.

43

A77429

PLUG

1/2 PT

1шт.

44

A77505

PLUG

3/4 PT

1шт.

.

Engine Block Heater

1шт.

.

240 Volt

1шт.

124340A1

KIT

240V, Incl. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

Element

1шт.

46

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

47

J910517

O-RING

1шт.

.

120 Volt

1шт.

196803A1

KIT

120V, Incl. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

Element

1шт.

46

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

47

J910517

O-RING

1шт.

.

120 Volt

1шт.

309651A1

KIT

120V, Incl. 48, 49

1шт.

48

NSS

NOT SOLD SEPARAT

Element

1шт.

49

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

.

240 Volt

1шт.

309652A1

KIT

240V, Incl. 48, 49

1шт.

48

NSS

NOT SOLD SEPARAT

Element

1шт.

49

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

50

NSS

NOT SOLD SEPARAT

Kit, Piston, See Figure 02-20

6шт.

.

Repair Kit

1шт.

87425554

KIT

Engine Overhaul;Incl. 51 - 57, Not Illustrated, Replaces A77982

1шт.

51

J934047

PIN,40mm OD x 82.68mm L

See Figure 02-20

6шт.

52

A77465

BEARING SET

See Figure 02-20

6шт.

53

A77405

CRANKSHAFT BEARING

See Figure 02-18

6шт.

54

A77896

BEARING SET

See Figure 02-18

1шт.

55

87417071

GASKET KIT

See Figure 02-21, Replaces A77977

1шт.

56

87549693

CYLINDER HEAD GASKET,2.7mm Thk

See Figure 02-14, 02-15; Replaces J945803

1шт.

57

A77979

GASKET KIT

See Figure 02-29

1шт.
