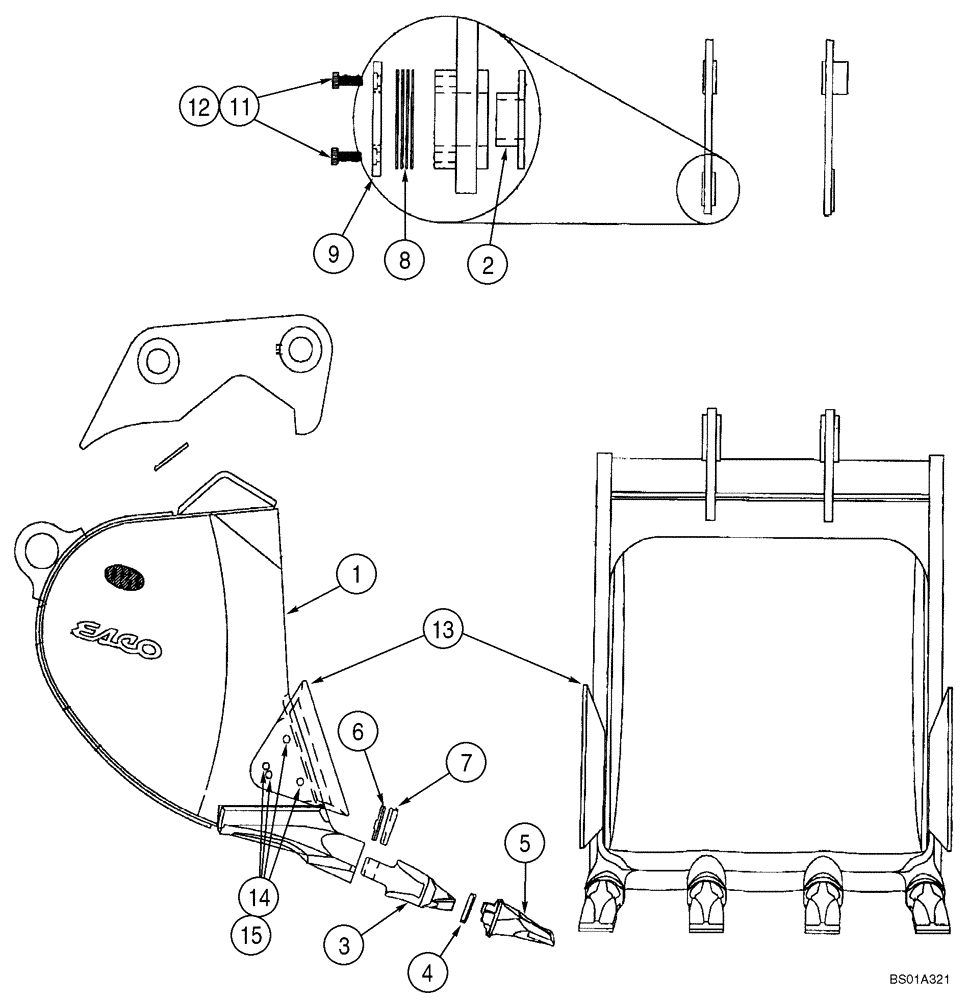

Запчасти Case CX290 (09-53) - BUCKETS - ESCO (09) - CHASSIS

Heavy Duty Cast Bucket

1шт.

1

REF

INSTRUCTION

0,73 m (0,96 cu yd), Bucket, With 4 Teeth

1шт.

1

REF

INSTRUCTION

0,82 m (1,08 cu yd), Bucket, With 4 Teeth

1шт.

1

REF

INSTRUCTION

1,02 m (1,34 cu yd), Bucket, With 5 Teeth

1шт.

2

166000A1

BUSHING

1шт.

3

378935A1

ADAPTER

4-5шт.

4

254098A1

BUCKET TOOTH KEY

4-5шт.

5

254093A1

TOOTH

4-5шт.

6

S107814

SPOOL

Fluted

4-5шт.

7

S107813

WEDGE

Fluted

4-5шт.

8

378633A1

SHIM

6шт.

9

378634A1

PLATE

1шт.

10

378632A1

PIN

Not Illustrated

2шт.

11

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

12

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378662A1

KIT

Shroud, Incl. 13 - 15

1шт.

13

244962A1

BLADE

2шт.

14

232-41314

LOCK NUT,7/8"-9, GC

6шт.

15

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

378643A1

KIT

Adjustment, Incl. 2, 8 - 12

1шт.
