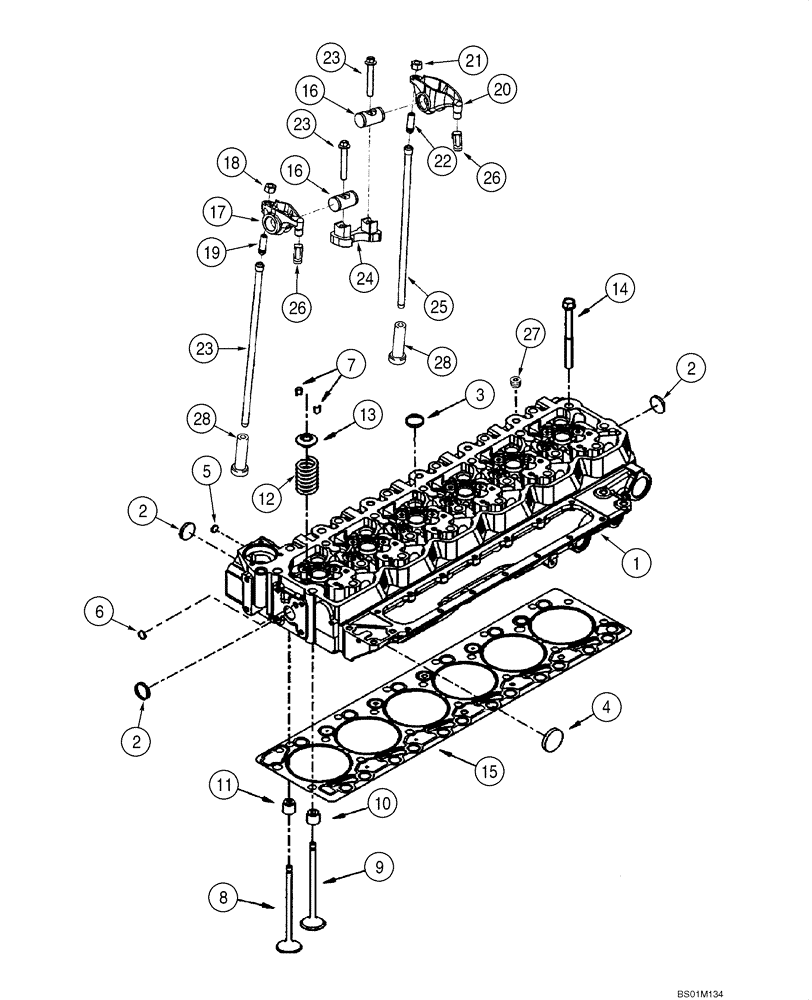

Запчасти Case CX290 (02-15) - CYLINDER HEAD - VALVE MECHANISM (02) - ENGINE

0

6TAA-5904 Emissions Certified Engine

1шт.

0

J937729

HEAD (CYLINDER)

Incl. 1 - 13

1шт.

0

JR937729

REMAN-CYLINDER HEAD

Reman For New P/N J937729

1шт.

0

JC937729

CORE-CYLINDER HEAD

Return Part Number, Use To Return Core For Credit

1шт.

0

87417122

REMAN-CYLINDER HEAD

Cylinder Head

1шт.

0

JC957403

CORE-CYLINDER HEAD

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Cylinder

1шт.

2

41-1616

PLUG,Cup, 1", Stainless

14шт.

3

J920706

PLUG

22 mm

11шт.

4

41-1624

PLUG,Cup, 1 1/2", Stainless

2шт.

5

41-108

PLUG,Cup, 1/2"

2шт.

6

J900955

PLUG

10 mm OD

7шт.

7

J940123

RETAINER

48шт.

8

J940734

VALVE

12шт.

9

J940735

VALVE

12шт.

10

87417124

SEAL

SEAL, Intake Valve, Yellow Replaces J942989

12шт.

11

87417125

SEAL

SEAL, Exhaust Valve, Green, Replaces J945438

12шт.

12

J943161

VALVE SPRING

24шт.

13

J943198

RETAINER

24шт.

14

J927063

FLANGE BOLT,Hex, M12 x 1.75 x 130mm, Cl 12.9

26шт.

15

87549693

CYLINDER HEAD GASKET,2.7mm Thk

Replaces J945803

1шт.

16

J935892

SHAFT

12шт.

17

J937219

ROCKER,Exhaust

Incl. 18, 19 - exhaust

6шт.

18

A77902

NUT

3/8 - 24 NF

1шт.

19

J941209

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

1шт.

20

J937220

ROCKER,Intake

Incl. 21, 22 - intake

6шт.

21

A77902

NUT

3/8 - 24 NF

1шт.

22

J941209

ADJUSTMENT SCREW,3/8" - 24 x 27.58mm

1шт.

23

J940195

SCREW,Hex Flg, M8 x 1.25 x 53mm, Cl 12.9

12шт.

24

J941559

SUPPORT

6шт.

25

J941253

PUSH ROD

12шт.

26

J943626

ROCKER

12шт.

27

A77429

PLUG

1/2 PT

4шт.

28

J945866

TAPPET

12шт.
