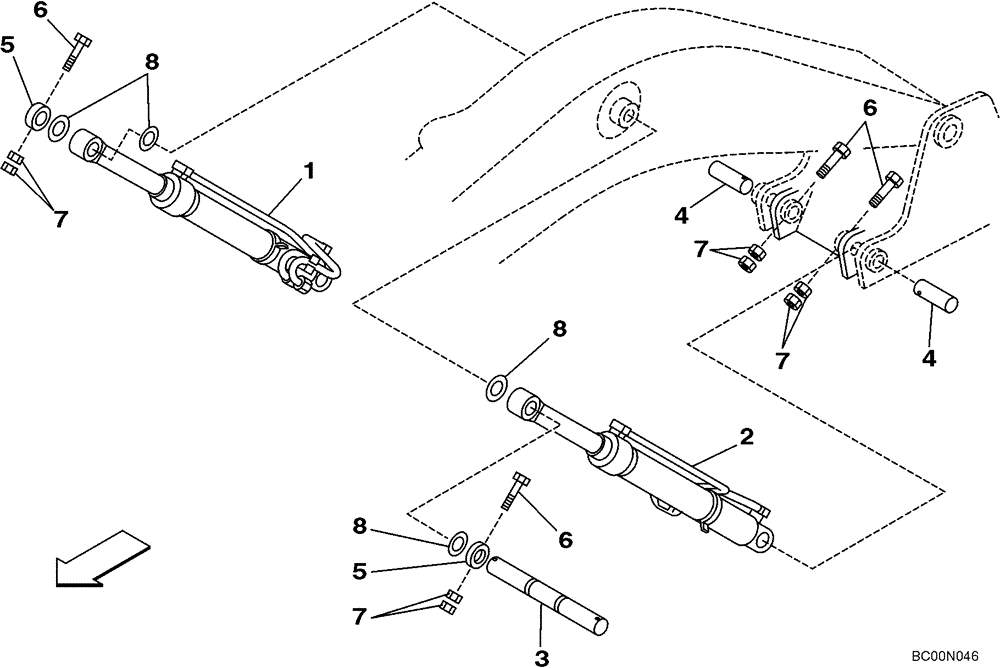

Запчасти Case CX290 (09-43) - BOOM CYLINDER - MOUNTING (09) - CHASSIS

1

KBV1688

HYDRAULIC CYLINDER

Right Hand, Models Without Load Hold, See Figure 08-86

1шт.

1

KBV1822

HYDRAULIC CYLINDER

Right Hand, Models With Load Hold, See Figure 08-88

1шт.

2

KBV1689

HYDRAULIC CYLINDER

Left Hand, Models Without Load Hold, See Figure 08-85

1шт.

2

KBV1823

HYDRAULIC CYLINDER

Left Hand, Models With Load Hold, See Figure 08-87

1шт.

3

KBV1751

PIN

1шт.

4

KBV1752

PIN

2шт.

5

KBV1750

COLLAR

2шт.

6

514-1218

BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9

4шт.

7

829-11420

NUT,M20 x 1.5, Cl 10

8шт.

8

KBV1749

SHIM

3шт.
