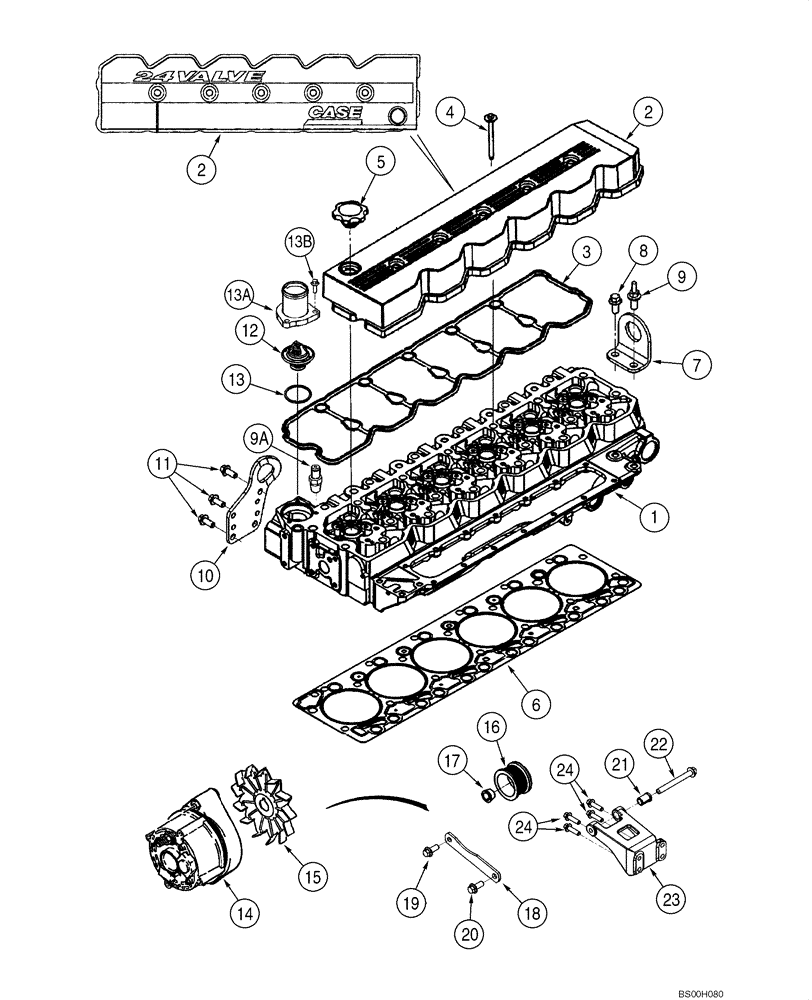

Запчасти Case CX290 (02-14) - CYLINDER HEAD - MOUNTING, ALTERNATOR (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Head, See Figure 02-15

1шт.

2

J938044

COVER

1шт.

3

J935878

GASKET,10.34mm Thk

1шт.

4

J946168

SCREW,Hex Skt, M8 x 1.25 x 95.28mm

5шт.

5

J937759

FILLER CAP

1шт.

6

87549693

CYLINDER HEAD GASKET,2.7mm Thk

Replaces J945803

1шт.

7

J940288

BRACKET

1шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

9

J944061

SCREW,Hex Flg, M12 x 1.75 x 25mm, Cl 10.9

1шт.

9a

J943670

FITTING

Vent

1шт.

Mounting, Alternator

1шт.

10

J943215

BRACKET

1шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

J954194

THERMOSTAT

Incl.12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

J942454

SEALING RING

1шт.

13a

J943300

PIPE ASSY.

Water Outlet

1шт.

13c

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

3шт.

14

A187916

ALTERNATOR,24V, 45A

See Figure 04-02

1шт.

15

221425R1

FAN

1шт.

16

J908560

PULLEY

Ref 17 Retainer Not Requred With Replacement Pulley 84538542

1шт.

17

J908563

RETAINER

Not Used With Replacement Pulley 84538542

1шт.

18

J943863

BRACE

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

20

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

1шт.

21

J910715

SPACER

1шт.

22

J908226

FLANGE BOLT,Hex, M10 x 1.5 x 95mm

M10 x 95

1шт.

23

J943301

SUPPORT

1шт.

24

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.
