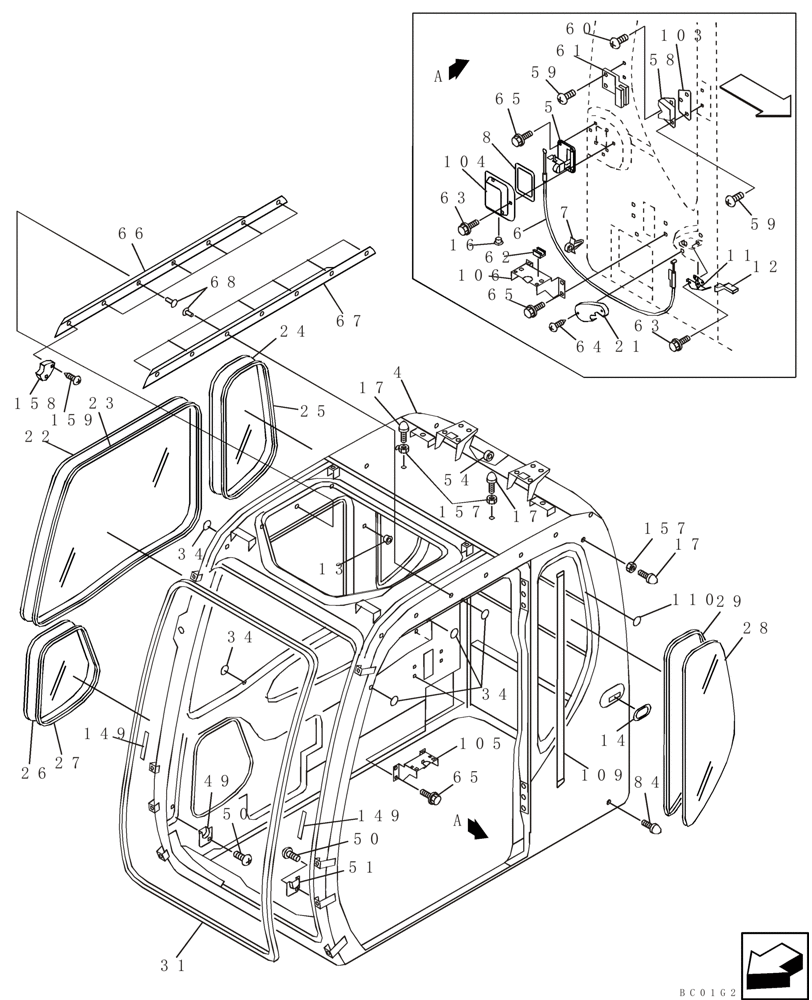

Запчасти Case CX290 (09-30) - CAB - GLASS (09) - CHASSIS

Side Windows

1шт.

KHN3269

CAB

Complete, Incl. 4 - 159, Also Includes Parts On Figures 04-10, 09-31 - 9-35

1шт.

4

KHN2943

CAB BODY

Brackets on the Top of the Cab Frame Are Not Serviceable

1шт.

5

161384A1

RH DOOR LOCK

Door

1шт.

6

161380A1

CABLE

1шт.

7

161381A1

COLLAR

4шт.

8

KHN3026

SEAL

1шт.

11

161376A1

LEVER

1шт.

12

161375A1

HANDLE

1шт.

13

161358A1

COAT HOOK

1шт.

14

161373A1

GROMMET

1шт.

16

161383A1

GROMMET

1шт.

17

161356A1

STOP

3шт.

21

161378A1

COVER

1шт.

22

KHN2939

GLASS

1шт.

23

KHN2637

WEATHERSTRIP

1шт.

24

KHN2941

GLASS

1шт.

25

KHN2639

WEATHERSTRIP

1шт.

26

KHN2940

GLASS

1шт.

27

KHN2641

WEATHERSTRIP

1шт.

28

KHN2938

GLASS

1шт.

29

KHN2936

SEAL, GLASS

1шт.

31

KHN2655

WEATHERSTRIP,4508mm L

1шт.

34

KHN2658

SEAL

5шт.

49

KHN11680

STOP LOCK

Replaces KHN2670

1шт.

50

KHN2671

SCREW

M6 x 1 x 20, If Used

2шт.

51

KHN11690

STOP LOCK

Replaces KHN2672

1шт.

54

KHN2676

STOP

1шт.

58

KHN2680

LATCH HOOK

1шт.

59

KHN2681

SCREW

M6 x 1 x 30

4шт.

60

KHN2682

SCREW,Spcl

M6 x 1 x 12

1шт.

61

KHN2683

HOLDER

1шт.

62

KHN2684

STOP

1шт.

63

KHN2686

BOLT,Spcl

5шт.

64

KHN2687

SCREW,Spcl

M5 x 14

2шт.

65

KHN2688

BOLT,Spcl

M8 x 25

12шт.

66

KHN2689

PROTECTOR

1шт.

67

KHN2690

PROTECTOR

1шт.

68

KHN2691

ANCHOR

13шт.

84

KHN2704

STOP

1шт.

103

KHN2722

LEDGER PLATE

1шт.

104

KHN2723

CAP ASSY.

1шт.

105

KHN2724

BRACKET

1шт.

106

KHN2725

SUPPORT

1шт.

109

KHN2942

BRACKET

1шт.

110

KHN2729

SEAL

1шт.

149

KHN2982

PAD, RUBBER

2шт.

157

161357A1

NUT

3шт.

158

KHN2974

BRACKET

1шт.

159

KHN2975

SCREW,Spcl

2шт.
