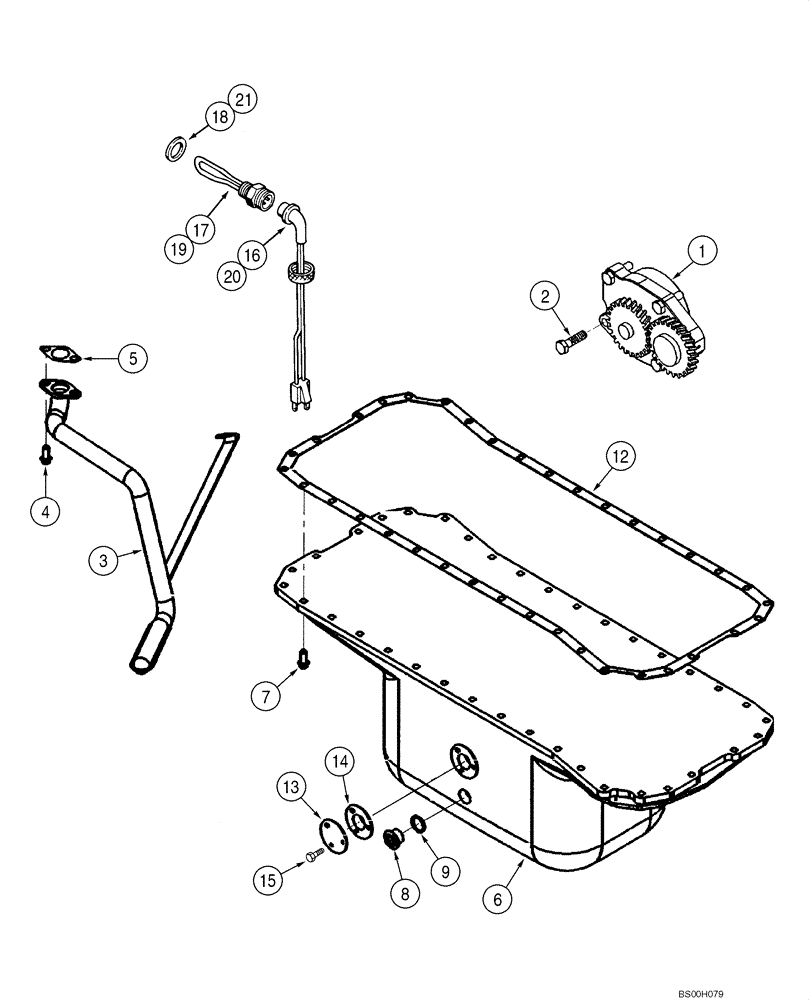

Запчасти Case CX290 (02-13) - OIL PUMP, PAN - HEATER (02) - ENGINE

6TAA-5904 Emissions Certified Engine

1шт.

1

J937404

PUMP, ENGINE OIL

1шт.

JR937404

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

JC937404

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J863105

SUCTION PIPE

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

5

J938157

GASKET,1.2mm Thk

1шт.

6

J863104

PAN, ENGINE OIL

PAN, OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

8

J924148

PLUG,M22 x 1.5

M22

2шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

13

J932513

PLATE

1шт.

14

J932512

GASKET

1шт.

15

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12

3шт.

A77979

GASKET KIT

Incl. 5, 9, 12, J920773

1шт.

Engine Oil Heater

1шт.

A77490

KIT

120V, Incl. 16, 17

1шт.

16

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

17

NSS

NOT SOLD SEPARAT

Element

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

19

J285916

HEATER

240V

1шт.

20

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

21

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
