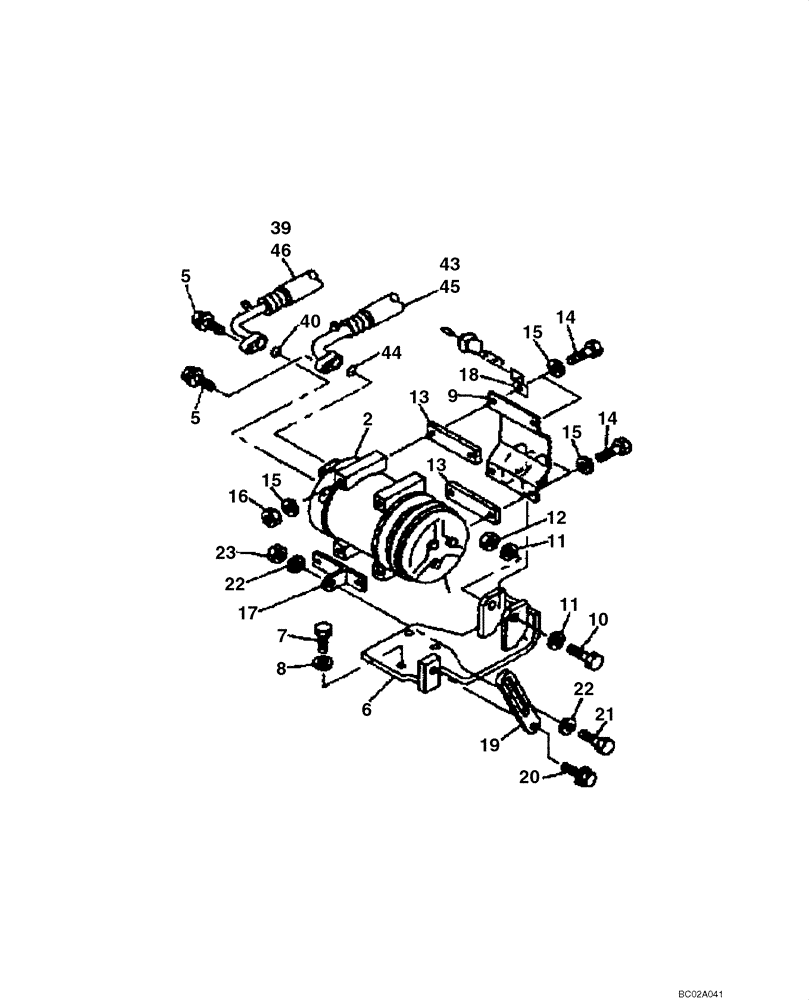

Запчасти Case CX290 (09-28) - CAB - AIR CONDITIONING (09) - CHASSIS

2

KHR3241

COMPRESSOR

1шт.

2

KHR3241R

REMAN-A/C COMPRESSOR

CX290 CASE CRAWLER EXCAVATOR (NORTH AMERICA)

1шт.

2

KHR3241C

CORE-A/C COMPRESSOR

Return Number

1шт.

3

KHR3246

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

For KHR3246, Not Illustrated

1шт.

4a

KHR3975

BOLT

Not Illustrated

3шт.

5

162457A1

SPECIAL BOLT,Spcl

2шт.

6

KRR1395

BRACKET

1шт.

7

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

8

150409A1

WASHER

3шт.

9

165820A1

BRACKET

1шт.

10

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

11

150811A1

WASHER

2шт.

12

829-1412

NUT,M12, Cl 10.9

1шт.

13

165806A1

BRACKET

2шт.

14

165807A1

BOLT

4шт.

15

153081A1

WASHER

6шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

17

165640A1

BRACKET

1шт.

18

158962A1

CLIP

1шт.

19

165821A1

ADJUSTER

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

21

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

22

150409A1

WASHER

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

39

KHR3809

HOSE

Incl. 40

1шт.

40

169053A1

O-RING

2шт.

43

KHR3729

HOSE

Incl. 44

1шт.

44

169052A1

O-RING

2шт.

45

KBR0720

PLASTIC-RUBBER TUBE

1шт.

46

158069A1

PLASTIC-RUBBER TUBE

1шт.
