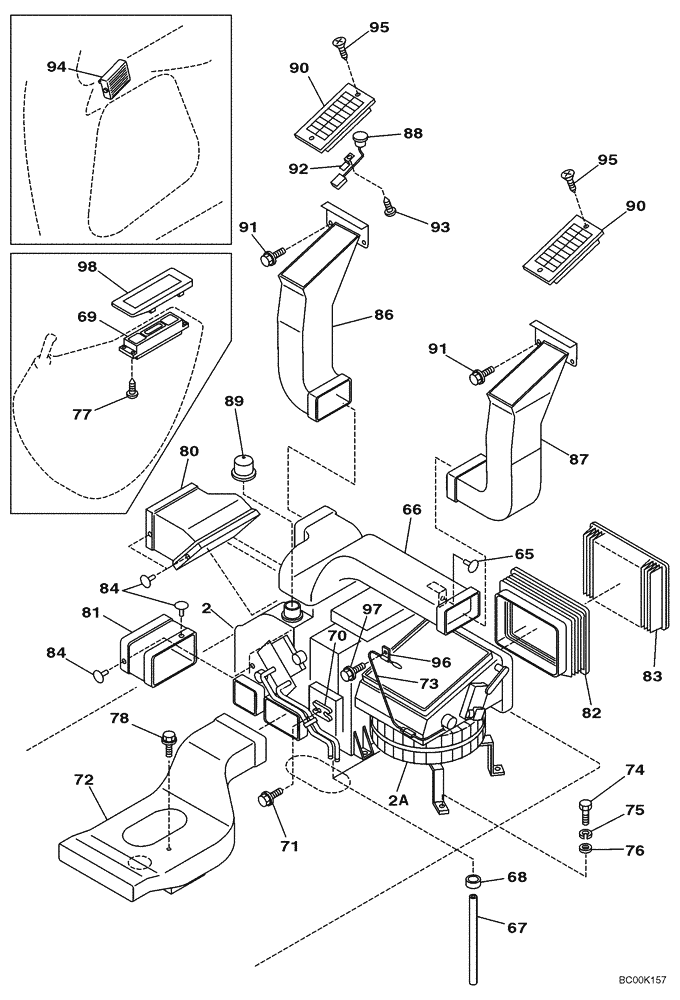

Запчасти Case CX290 (09-24) - AIR CONDITIONING - DUCTS (09) - CHASSIS

2

REF

INSTRUCTION

Air Conditioner, See Figure 09-25

1шт.

2a

REF

INSTRUCTION

Air Conditioner, See Figure 09-26

1шт.

65

KHR2773

COLLAR

2шт.

66

KHR2761

DUCT

1шт.

67

KHR2757

HOSE

2шт.

68

159622A1

MOUNTING CLIP

2шт.

69

KHR2758

CLUSTER, INSTR.

CLUSTER, INSTRUMENT

1шт.

70

KHR2759

NUT

1шт.

71

KHR2464

BOLT

1шт.

72

KHR2760

DUCT

1шт.

73

KHR2762

SENSOR

1шт.

74

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

6шт.

75

892-11010

LOCK WASHER,M10

6шт.

76

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

77

KHR2737

SELF-TAP SCREW

4шт.

78

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

80

KHR2766

DUCT

1шт.

81

KHR2769

DUCT

1шт.

82

KHR2770

DUCT

1шт.

83

KHR2772

CAB FILTER

1шт.

84

KHR2986

DOWEL

4шт.

86

KHR2775

AIR DUCT

1шт.

87

KHR2776

AIR DUCT

1шт.

88

KHR2777

SENSOR

1шт.

89

KHR3328

CAP

1шт.

90

167096A1

DIFFUSER

2шт.

91

167320A1

BOLT,Spcl, M8 x 20mm

4шт.

92

165405A1

CLIP

1шт.

93

KHR3016

SELF-TAP SCREW

1шт.

94

KHR2517

DIFFUSER

Fits Into KHN2232 Box, See Figure 09-31, REF 271

1шт.

95

KHR2946

SCREW

4шт.

96

157803A1

COLLAR CLAMP

1шт.

97

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

98

KHN2290

BELLOWS

1шт.
