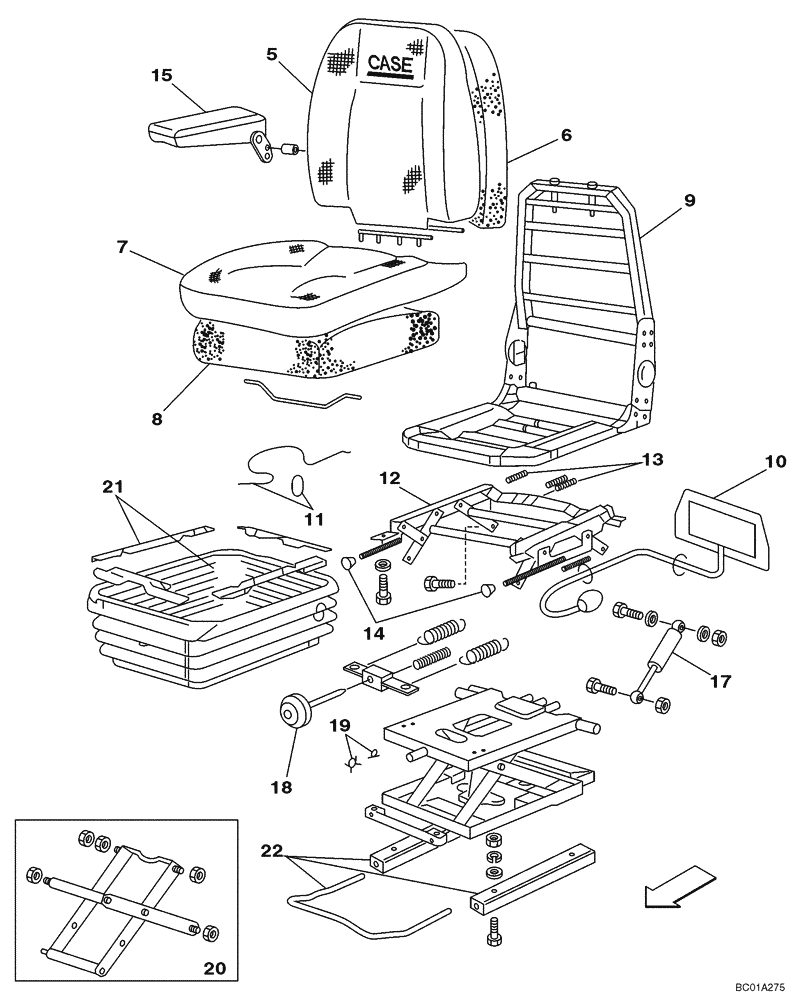

Запчасти Case CX290 (09-18) - SEAT (09) - CHASSIS

300642A1

SEAT ASSY.

Grey, Incl. 1 - 22, Also Includes Parts On Figures 09-17, REF 2, 24 - 27

1шт.

87344650

DRIVER SEAT

Wheat, Incl. 1 - 22, Also Includes Parts On Figures 09-17, REF 2, 24 - 27

1шт.

307040A1

SEAT ASSY.

Grey, Incl. 5 - 11

1шт.

KHN3638

SEAT ASSY., Wheat, Incl. 5 - 14

1шт.

5

307042A1

DRIVER'S SEAT COVER

Backrest, Grey

1шт.

87350972

SEAT COVER

Backrest, Wheat

1шт.

6

H4841461

FOAM

Seat Back

1шт.

7

F2547002

SEAT COVER

Seat Cushion, Grey

1шт.

87350973

SEAT COVER

Seat Cushion, Wheat

1шт.

8

J4841462

FOAM

Seat Bottom

1шт.

9

307043A1

FRAMEWORK

1шт.

10

307044A1

KIT

Backrest Adjustment

1шт.

11

D2447088

CABLE

Recliner Control

1шт.

307045A1

KIT

Height Riser, Incl. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

Frame

1шт.

13

307046A1

KIT

Height Riser Springs

1шт.

14

307047A1

SET OF PARTS

Height Adjustment

1шт.

15

307048A1

ARMREST ASSY.

Right Hand And Left Hand

1шт.

307049A1

SUSPENSION

Suspension Assy, Incl.16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Suspension

1шт.

17

L4143253

SET OF PARTS

Shock Absorber

1шт.

18

B2447086

SET OF PARTS

Weight Adjustment

1шт.

19

307050A1

KIT

Suspension Bump Stop

1шт.

20

307051A1

BEARING ASSY

Height Adjustment

1шт.

21

307052A1

KIT

Suspension Cover

1шт.

22

307053A1

KIT

Seat Slide Rails

1шт.
